LAINOX New Chill Series Blast Chiller & Freezer (16 Trays) - For Pastry/Bakery PCM161S
MODEL
PCM161S
Login to view price
Additional Information
| Model | PCM161S |
|---|---|
| Brand | Lainox |
| Size (LxWxH) mm | 790 x 800 x 1950 |
| Weight (KG) | 191 |
| Voltage | 3N-AC 400V |
| Warranty | One Year Manufacturing Defect |
| Origin | Italy |

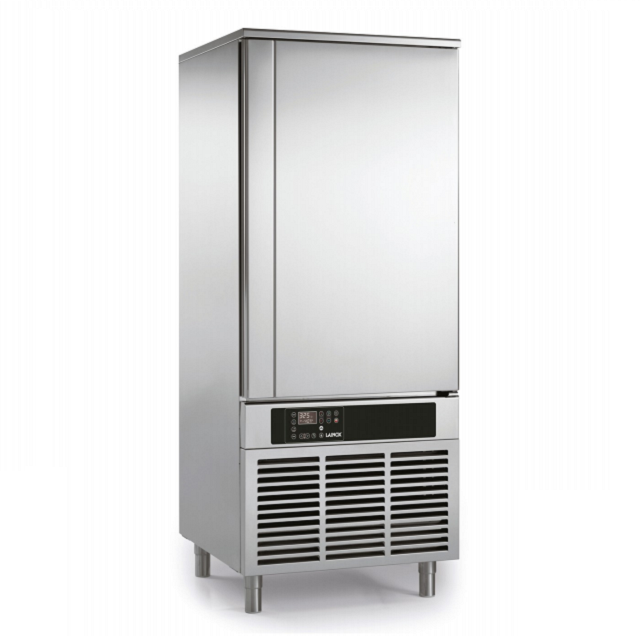

*** The first picture shows the T version control panel
| Model | PCM161S |
| Capacity | 16 x (600 x 400) GN |
| Internal working | 460 mm |
| Distance between layers | 65 mm |
| Feet ø 2” - h | 150 mm |
| Door span | 670 x 1100 mm |
| PU insulation - Thickness | 60 mm |
| Blast Chilling capacity in 90’. (+90 to +3°C) | 55 kg |
| Deep Freezing capacity in 240’. (+90 to -18°C) | 36 kg |
| Total electric power | 5.25 kW |
| Power supply voltage | 3N-AC 400V |
| Frequency | 50Hz |
| Refrigeration capacity (#) | 3.93 kW |
| Electric power (remote unit) | 5.05 kW |
| Compressor | 3 1/2 hp |
| Climate class | T |
| Refrigerant - Type | R452A |
| Refrigerant - Q.ty air cooling | 1900 g |
| Refrigerant - Q.ty water cooling | 1580 g |
| Noise level | < 70 db(A) |
| External dimensions (L x W x H) | 790 x 800 x 1950 mm |
| Packing dimensions (L x W x H) | 850 x 860 x 2100 mm |
| Net weight | 191 kg |
| Gross weight | 208 kg |
Operation
- Digital controls with display of set and detected values
- Blast chilling +90 / +3°C
- Shock freezing +90 / -18°C
- Soft function: delicate chilling setting
- Time setting and time statistics control
- Core probe temperature control
- Manual time setting and chamber temperature control
- Pre-cooling
- Heated core temperature probe
- Continuous cycle
- Circuit breaker for compressor protection
- Internal fan stop by micro switch when door is opened.
Cooling system
- Indirect blowing electronic fans
- Evaporators with large exchange surfaces, and multiple injection points for high cooling efficiency
- High capacity liquid/gas heat exchanger.
Construction
- Copper-aluminium evaporator with cataphoresis anticorrosion treatment
- High performance copper-aluminium condenser
- Ergonomic handle on the complete door length and magnetic gaskets on the 4 sides of the door
- Internal fan panel can be opened on side hinges, to clean the evaporator
- Stainless steel feet ø 2”, height-adjustable with anti-scratch cap
