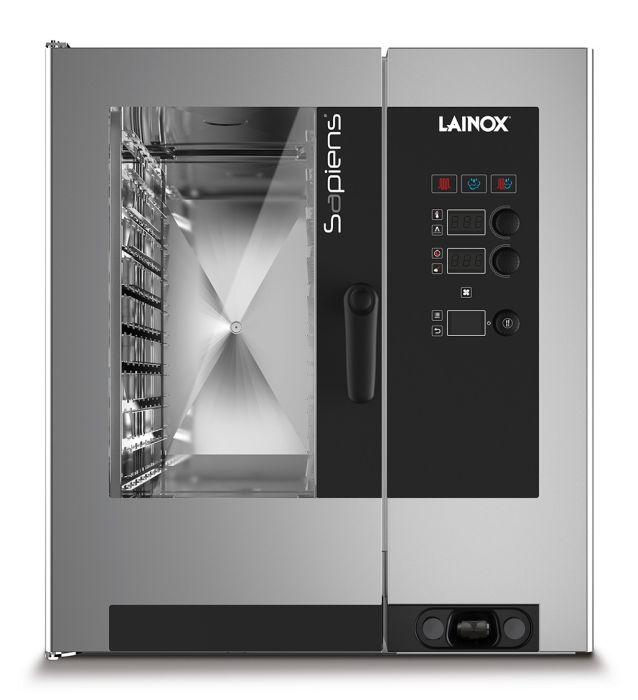

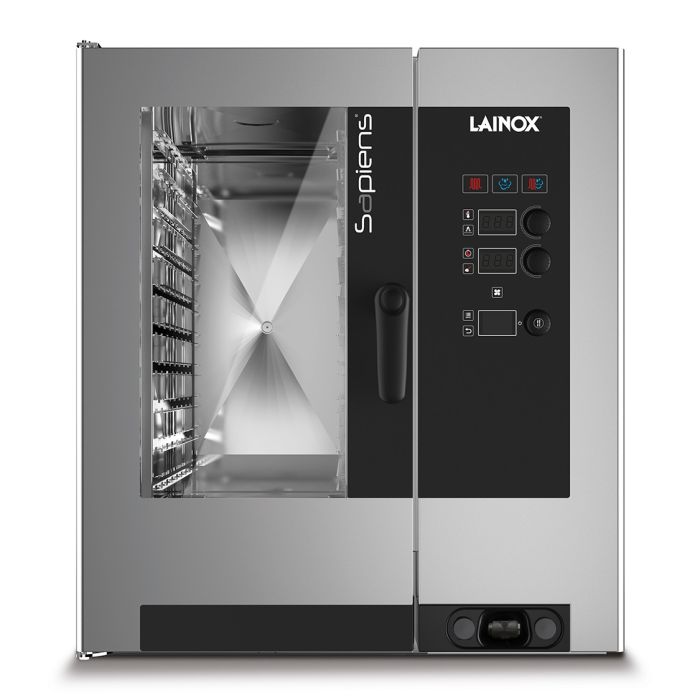

LAINOX Combi Steamer with Direct Steam For Gastronomy SAEV101R

Standard equipment

• Pre-configuration for quick connection for core probe via external connector to cooking chamber - core probe optional
• Built-in and retractable hand shower with tap
• USB connection
• 6 speed fan
• side runners

Cooking modes

• Can store 99 cooking programmes in automatic sequence (up to 9 cycles), assigning a name and dedicated icon
• Manual cooking with three cooking modes and instant cooking start:
• convection from 30°C to 300°C
• steam from 30°C to 130°C
• combination convection + steam from 30°C to 300°C
• Autoclima® - automatic system for measuring and controlling the humidity in the cooking chamber
• Fast-dry® - system for quick dehumidification of the cooking chamber

Operation

• LED HVS (high visibility system) alphanumeric display to display the temperatures, autoclima, time and core temperature
• 2.4-inch (LCD - TFT) colour display
• Scroller knob with scroll and push function for confirming choices

Control mechanisms

• Automatic reverse of fan rotation for perfect cooking uniformity
• Automatically regulated steam condensation
• Manual chamber pressure relief control
• Manual humidifier
• Ability to choose up to 6 fan speeds
• the first 3 speeds automatically trigger a reduction in heating power
• for special cooking methods, you can use an intermittent speed
• USB connection to download HACCP data, update software and load/download cooking programmes
• LED cooking chamber lighting

Construction

• Stainless steel 18/10 AISI 304 of 1mm cooking compartment with long radius rounded corners for a perfect cleaning
• Door with double tempered glass
• Internal glass that folds to open for easy cleaning
• Handle with left or right hand opening
• Adjustable hinge for optimal seal
• Deflector that can be opened for easy fan compartment cleaning
• IPX5 protection against water splashes
• Oven drain with built-in air gap
• Two water inlets (soft and cold water)

Safety features

• Cooking compartment safety thermostat
• Cooking compartment safety device for pressure built-up and depression
• Fan motor thermic protection
• Magnetic door switch
• Lack of water displayed alarm
• Self-diagnosis and fault display
• Component cooling system with overheat display control
