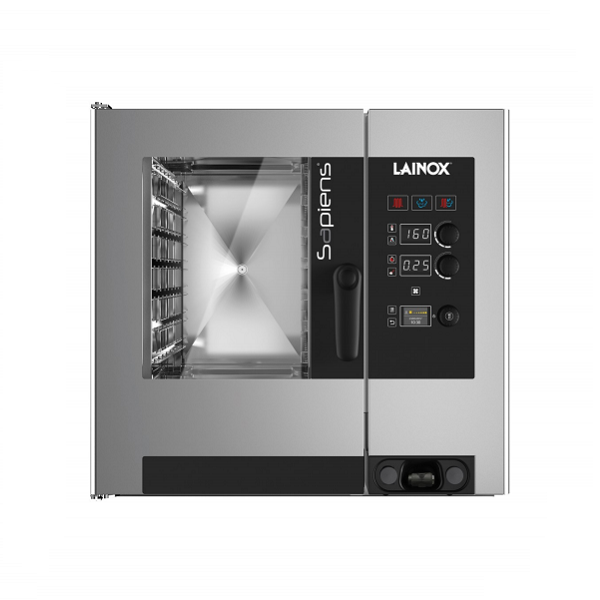

LAINOX Combi Steamer with Boiler For Gastronomy SAEB071R

MODEL
SAEB071R

Login to view price

Additional Information
More Information
ModelSAEB071R
BrandLainox
Energy TypeElectric
Size (LxWxH) mm875 x 825 x 820
Warranty One Year Manufacturing Defect
OriginItaly
Model SAEB071R
Capacity 7 x 1/1 GN
Distance between layers ↕ 70 mm
Meals 50/120n°
Total electric power 10.5 kW
Gas versions nominal heating output (kW / kcal) - / -
Chamber heating output (kW / kcal) 10 / -
Steam heating output (kW / kcal) 7.5 / -
Fan power 0.5 kW
Power supply voltage 3N-AC 400V
Frequency 50/60Hz
Consumption 16 amp
External dimensions (L x W x H) 875 x 825 x 820 mm
Packing dimensions (L x W x H) 945 x 990 x 1000 mm
Net weight 139 kg
Gross weight 157 kg
Spec Sheet (1.86 MB)
User Manual (3.62 MB)

Standard equipment

  • CALOUT descaling system for models with boiler - supplied with anti-scale product
  • Pre-configuration for quick connection for core probe via external connector to cooking chamber - core probe optional
  • Built-in and retractable hand shower with tap
  • USB connection
  • 6 speed fan
  • side runners

Cooking modes

  • Can store 99 cooking programmes in automatic sequence (up to 9 cycles), assigning a name and dedicated icon
  • Manual cooking with three cooking modes and instant cooking start:
    • convection from 30°C to 300°C
    • steam from 30°C to 130°C
    • combination convection + steam from 30°C to 300°C
  • Autoclima® - automatic system for measuring and controlling the humidity in the cooking chamber
  • Fast-dry® - system for quick dehumidification of the cooking chamber

Operation

  • LED HVS (high visibility system) alphanumeric display to display the temperatures, autoclima, time and core temperature
  • 2.4-inch (LCD - TFT) colour display
  • Scroller knob with scroll and push function for confirming choices

Control mechanisms

  • Automatic reverse of fan rotation for perfect cooking uniformity
  • Automatically regulated steam condensation
  • Manual chamber pressure relief control
  • Manual humidifier
  • Ability to choose up to 6 fan speeds
    • the first 3 speeds automatically trigger a reduction in heating power
    • for special cooking methods, you can use an intermittent speed
  • USB connection to download HACCP data, update software and load/download cooking programmes
  • LED cooking chamber lighting

Construction

  • Stainless steel 18/10 AISI 304 of 1mm cooking compartment with long radius rounded corners for a perfect cleaning
  • Door with double tempered glass
  • Internal glass that folds to open for easy cleaning
  • Handle with left or right hand opening
  • Adjustable hinge for optimal seal
  • Deflector that can be opened for easy fan compartment cleaning
  • IPX5 protection against water splashes
  • Oven drain with built-in air gap
  • Two water inlets (soft and cold water)

Steam generator

  • AISI 304 fully insulated steam generator
  • Alarm in case of boiler de-scaling required
  • Boiler semi-automatic de-scaling program
  • CALOUT system to prevent scale build-up within the boiler, as standard

Safety features

  • Cooking compartment safety thermostat
  • Cooking compartment safety device for pressure built-up and depression
  • Fan motor thermic protection
  • Magnetic door switch
  • Lack of water displayed alarm
  • Self-diagnosis and fault display
  • Component cooling system with overheat display control
  • Boiler safety thermostat
  • Boiler water level probes
  • Boiler probe to check boiler completely empty
