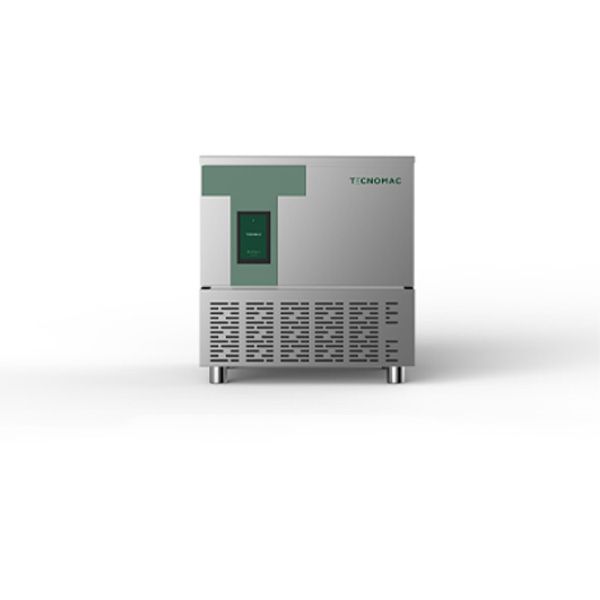

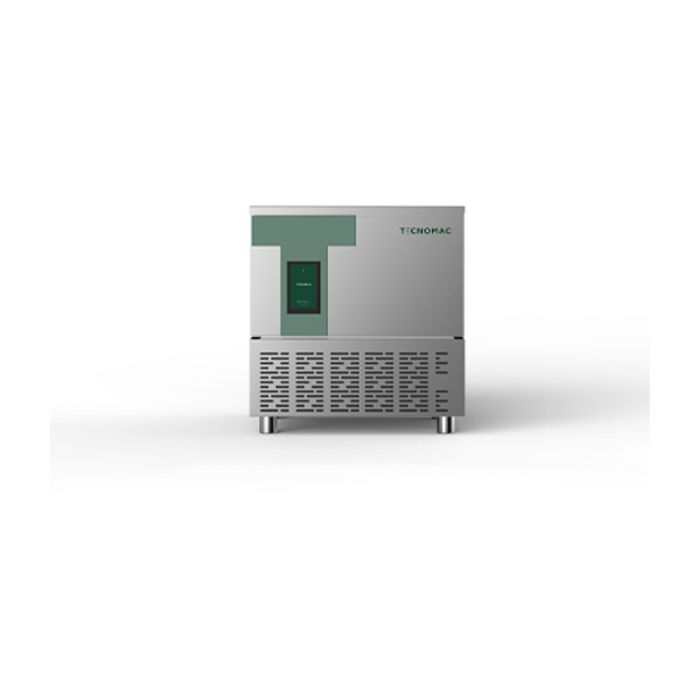

TECNOMAC Mint 5, 5 Trays GN1/1 Blast Chiller/Freezer MM5-MINT

Name: TECNOMAC Mint 5, 5 Trays GN1/1 Blast Chiller/Freezer MM5-MINT
Brand: TECNOMAC
SKU: SE-MM5-MINT
Price: 82500 MYR
Availability: InStock

Be the first to review this product

MODEL

MM5-MINT

Additional Information

More Information
Model	MM5-MINT
Brand	TECNOMAC
Size (LxWxH) mm	790 x 926 x 850
Weight (KG)	86
Warranty	One Year Manufacturing Defect
Origin	Italy

Details

Model	MM5-MINT
Product yields (+90°C/+3°C)*	30 kg
Product yields (+90°C/-18°C)*	25 kg
Humidity range	20% / 90%
Ice cream trays	165 x 360 x 120 mm	6
	250 x 360 x 120 mm	4
Carapine	Ø200 x 250 mm	4
Performance
Blast chilling capacity (+65°C -> +10°C) EN ISO22042	25 kg
Freezing capacity (+65°C -> -18°C) EN ISO22042	25 kg
Energy consumption per blast cycle (+65°C -> +10°C) UNI EN ISO22042	0.07 kW/kg
Energy consumption per freezing cycle (+65°C -> +10°C) UNI EN ISO22042	0.27 kW/kg
Blast-down time (+65°C -> +10°C) UNI EN ISO22042	120 min
Freezing time (+65°C -> -18°C) UNI EN ISO22042	270 min
Technical data
Temperature range	-40°C / +85°C
Insulation thickness	60 mm
Number of rooms	1
Door type	Blind
Number of doors	1
Condensation type	Air
Plant type	Motor on board
	Ventilated
Compressor type	Hermetic
Refrigerant gas	R290
GWP refrigerant gas	3
Refrigerant gas quantity	131 g
Water inlet connection	3/4 NTPf
Maximum inlet water connection pressure	5 bar (0.5Mpa)
Cooling power ASHRAE lbp	1200 W (4092 BTU/h)
Sound power	<70 dbA
Expansion valve type	Mechanics
Defrost type	Open door
Defrost water evaporation	Exhaust pipe
Interior lighting	Not present
Outdoor lighting	Not present
Cooling power	2002 W (6826.82 BTU/h)
Climatic class	5
Heat expelled	2500 W (8525 BTU/h)
Air Volume	1 m³/h
Secondary electrical data
Power resistive loads	700 W
Resistive load absorption	3.04 A
Power cable	3G 2,5 mm²
Power plug	CE-Schuko
Electrical power supply variants
FLI - Full - Load power	220-240 V ~ 50 Hz	2200 W
	208-230 V ~ 60 Hz	2640 W
FLA - Full - Load amperage	220-240 V ~ 50 Hz	7 A
	208-230 V ~ 60 Hz	8 A
Capabilities
GN guides step	68 mm
Step guides EN	17.5 mm
Step IC guides	17.5 mm
5 litres tanks (360 x 165 x 120 mm)	6
5 litres tanks (360 x 250 x 80 mm)	4
Carapine 7 litres (Ø200 x 250 mm)	4
Dimension
Foot height	70-100 mm
Door light	Width	670 mm
	Height	370 mm
Door depth open 90°	1625 mm
Inner depth	410 mm
Dimension (L x W x H)	790 x 926 x 850 mm
Packing dimension (L x W x H)	850 x 990 x 995 mm
Net weight	86 kg
Gross weight	101 kg

*Tests carried out according to the Castel MAC procedure, using beef cooked with a thickness of 5 cm.

Attachment

Description

Features

Latest generation electronic fans (5 different speeds)
High-density (about 42 kg/m3), HCFC-free polyurethane foam insulation - Thickness 60 mm
Active humidity control in the chamber
Maximum flexibility to optimize and customize the daily work process
Air condensation
Heated 4-point core probe included
Convertible GN/EN tray holder included
HACCP USB port included
Refrigerant fluid R290
Total chamber inspectability for maximum hygiene
Copper-aluminum evaporator coil, cataphoresis painted with non-toxic epoxy resin
Condensation tray
7'' high definition touch display on the door
Bi-directional 4.0 connectivity
Built-in Wi-Fi
USB port for cycle downloads, Firmware upgrades, recipe upload/download, etc.
10 basic working functions: blast chilling, deep-freezing, thawing, freezing, low-temperature cooking, keeping warm/cold, pasteurisation, dehydration, crystallisation
190 preloaded recipes
More than 20 preloaded combined cycles
Infinite combination of functions in combined work cycles
Multilingual It-en-fr-es-de-dk-cz-fi
