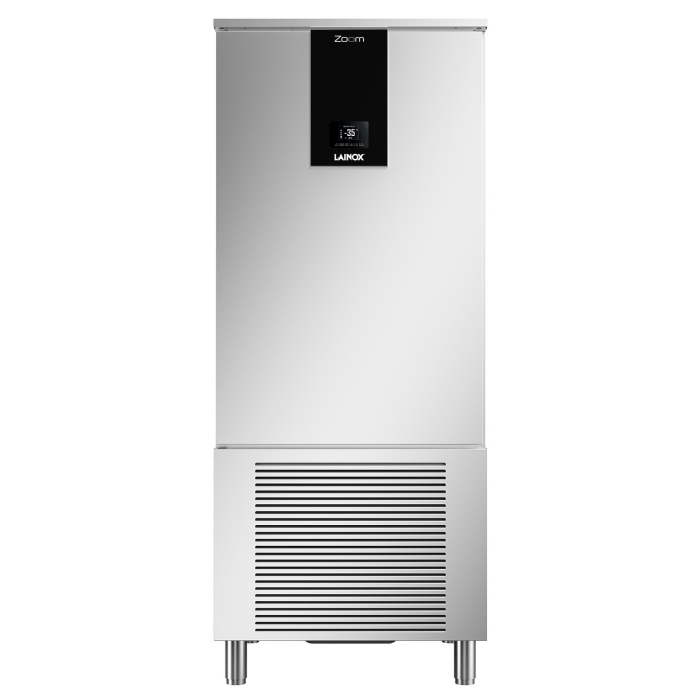

LAINOX Zoom Boosted Series Blast Chiller & Freezer With Graphic Colour Display ZO161BA
MODEL
ZO161BA
Login to view price
Additional Information
| Model | ZO161BA |
|---|---|
| Brand | Lainox |
| Size (LxWxH) mm | 790 x 870 x 1960 |
| Weight (KG) | 210 |
| Voltage | 400V-3N+PE 50Hz |
| Warranty | One Year Manufacturing Defect |
| Origin | Italy |
| Model | ZO161BA |
| Capacity | 14 x GN 1/1 - 14 x 600 x 400 |
| Chilling capacity | 80 kg |
| Freezing capacity | 60 kg |
| Temperature range | -18°C to 3°C |
| n° of doors | 1 n° |
| n° of compartments | 1 n° |
| Internal setup | Tray holder with double step guides |
| Number of load positions | 14 n° |
| Pitch | 73 mm |
| Refrigerant | R452A |
| Absorbed electrical power | 3840 W |
| Cooling power | 2724 W |
| Power supply | 400V-3N+PE 50Hz |
| Nominal current | 7.79A |
| Noise level | 67 dB(A) |
| Quantity charge gas | 1700 g |
| Climate class | 5 |
| Yield per cycle (+65/+10°C) kg | 75 |
| Yield per cycle (+65/-18°C) kg | 50 |
| Energy cosumption for freezing function | 0.06 kWh/kg |
| Energy cosumption for blast chilling function | 0.19 kWh/kg |
| Insulation thickness | 60 mm |
| Inner depth | 450 mm |
| Door opening width | 670 mm |
| Net height door | 1130 mm |
| Dimension (L x W x H) | 790 x 870 x 1960 mm |
| Packed dimension (L x W x H) | 890 x 970 x 2110 mm |
| Net weight | 210 kg |
| Gross weight | 250 kg |
Features
- Condensing unit on board with air cooling
- Blast chilling
- Shock freezing
- External sides and top in AISI 304 18/10 stainless steel th. 0,8mm (Scotch-Brite satin finish)
- Top in stainless steel th. 1 mm (Scotch-Brite satin)
- Inner in stainless steel with rounded corners
- Cavity with central drain for discharge of washing water
- Heating element in the door frame
- Ergonomic full-height door handle
- Heated core probe
- Pre-cooling function
- Automatic storing at end of blast chilling
- Removable stainless steel guides, can be positioned by interlocking (GN - EN)
- Capacitive TOUCH control with 2,8' high definition display placed on the door
- Indirect blowing electronic fans, efficient but gentle on food
- Copper-aluminum evaporator with cataphoresis anti-corrosion treatment
- High-ventilation evaporator to ensure the highest efficiency of the cooling system
- High performance copper-aluminum condenser
- Class T (ambient temperature +43°C)
