Additional Information

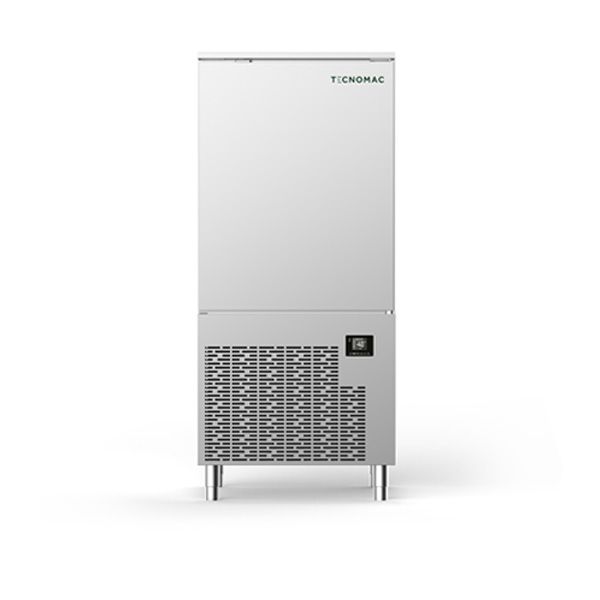

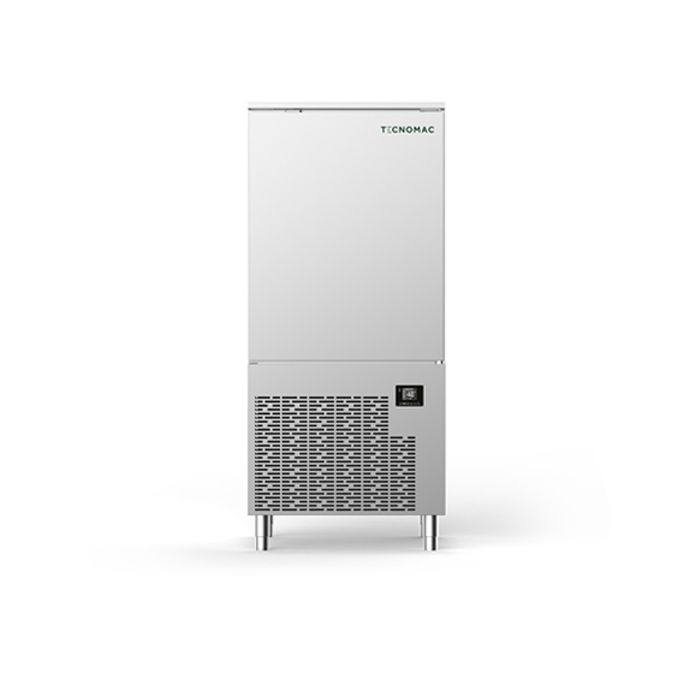

| Model | CM10 |
|---|---|
| Brand | TECNOMAC |
| Size (LxWxH) mm | 790 x 900 x 1730 |
| Weight (KG) | 188 |
| Voltage | 380-415 V 3N~ 50 Hz |
| Warranty | One Year Manufacturing Defect |
| Origin | Italy |
| Model | CM10 | |
| Product yields (+90°C/+3°C) | 60 kg | |
| Product yields (+90°C/-18°C) | 40 kg | |
| Ice cream trays | 165 x 360 x 120 mm | 18 |
| 250 x 360 x 120 mm | 12 | |
| 250 x 360 x 120 mm | 8 | |
| Supply | ||
| Power supply | 380-415 V 3N~ 50 Hz | |
| FLI - Max cold power | 3275 W | |
| FLA - Max cold absorption | 7.6 A | |
| Power cable | 5G 2,5 mm² | |
| Power plug | Plug not provided | |
| Performance | ||
| Blast chilling capacity (+65°C -> +10°C) EN ISO22042 |
40 kg | |
| Freezing capacity (+65°C -> -18°C) EN ISO22042 |
30 kg | |
| Energy consumption per blast cycle (+65°C -> +10°C) UNI EN ISO22042 |
0.1 kW/kg | |
| Energy consumption per freezing cycle (+65°C -> +10°C) UNI EN ISO22042 |
0.33 kW/kg | |
| Blast-down time (+65°C -> +10°C) UNI EN ISO22042 |
120 min | |
| Freezing time (+65°C -> -18°C) UNI EN ISO22042 |
270 min | |
| Technical data | ||
| Temperature range | -40°C / +5°C | |
| Insulation thickness | 60 mm | |
| Number of rooms | 1 | |
| Door type | Blind | |
| Number of doors | 1 | |
| Condensation type | Air | |
| Plant type | Motor on board | |
| Ventilated | ||
| Compressor type | Hermetic | |
| Refrigerant gas | R290 | |
| GWP refrigerant gas | 3 | |
| Refrigerant gas quantity | 2 x 150 g | |
| Cooling power ASHRAE lbp | 3076 W | |
| Sound power | <70 dbA | |
| Expansion valve type | Mechanics | |
| Defrost type | Open door | |
| Defrost water evaporation | Automatic | |
| Interior lighting | Not present | |
| Cooling power | 5106 W | |
| Climatic class | 5 | |
| Heat expelled | 6200 W | |
| Air Volume | 2 m³/h | |
| Capabilities | ||
| GN guides step | 68 mm | |
| Step guides EN | 17.5 mm | |
| Step IC guides | 17.5 mm | |
| 5 litres tanks (360 x 165 x 120 mm) | 18 | |
| 5 litres tanks (360 x 250 x 80 mm) | 12 | |
| Carapine 7 litres (Ø200 x 250 mm) | 8 | |
| Dimension | ||
| Foot height | 145-205 mm | |
| Door light | Width | 670 mm |
| Height | 930 mm | |
| Door depth open 90° | 1600 mm | |
| Internal depth | 410 mm | |
| Dimension (L x W x H) | 790 x 900 x 1730 mm | |
| Packing dimension (L x W x H) | 850 x 950 x 1945 mm | |
| Net weight | 188 kg | |
| Gross weight | 195 kg | |
Features
- Latest generation fans
- Insulation in high density expanded polyurethane (approximately 42 kg/m3), HCFC free - Thickness 60 mm
- Core probe
- Total inspectability of the room for maximum hygiene
- Condensate collection tray
- Air condensation
- Heated core probe included
- Refrigerant fluid R290
- Evaporating coil in copper-aluminum, cataphoresis painted with non-toxic epoxy resin
- 2.8'' LCD graphic display and capacitive keys
- IPX4 organized electrical panel on the front, easy to access
