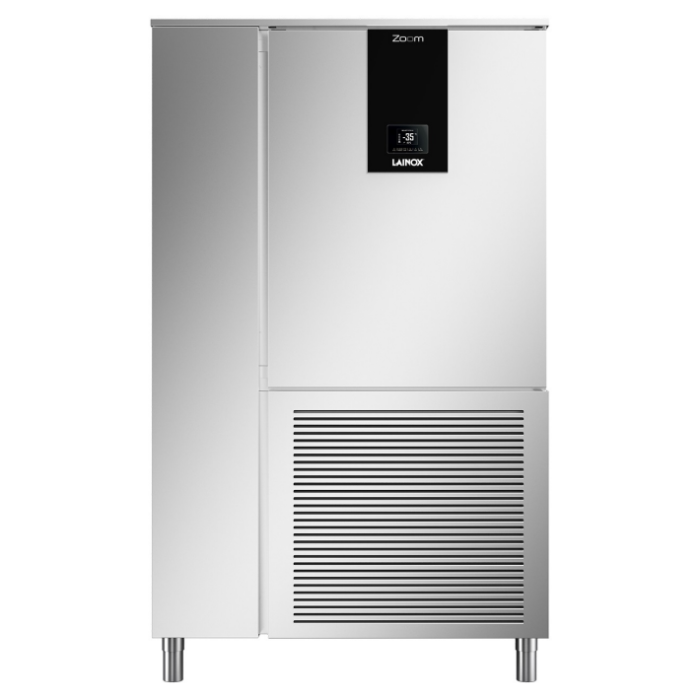

LAINOX Zoom Boosted Series Blast Chiller & Freezer With Graphic Colour Display ZO122BA
MODEL
ZO122BA
Login to view price
Additional Information
| Model | ZO122BA |
|---|---|
| Brand | Lainox |
| Size (LxWxH) mm | 1100 x 1080 x 1860 |
| Weight (KG) | 255 |
| Voltage | 400V-3N+PE 50Hz |
| Warranty | One Year Manufacturing Defect |
| Origin | Italy |
| Model | ZO122BA |
| Capacity | 11 x GN 2/1 - 22 x GN 1/1 - 22 x 600 x 400 |
| Chilling capacity | 80 kg |
| Freezing capacity | 55 kg |
| Temperature range | -18°C to 3°C |
| n° of doors | 1 n° |
| n° of compartments | 1 n° |
| Internal setup | Tray holder with double step guides |
| Number of load positions | 11 n° |
| Pitch | 75 mm |
| Refrigerant | R452A |
| Absorbed electrical power | 4740 W |
| Cooling power | 3307 W |
| Power supply | 400V-3N+PE 50Hz |
| Nominal current | 8.85A |
| Noise level | <70 dB(A) |
| Quantity charge gas | 2300 g |
| Climate class | 5 |
| Yield per cycle (+65/+10°C) kg | 80 |
| Yield per cycle (+65/-18°C) kg | 55 |
| Energy cosumption for freezing function | 0.07 kWh/kg |
| Energy cosumption for blast chilling function | 0.18 kWh/kg |
| Insulation thickness | 60 mm |
| Inner depth | 930 mm |
| Door opening width | 670 mm |
| Net height door | 880 mm |
| Dimension (L x W x H) | 1100 x 1080 x 1860 mm |
| Packed dimension (L x W x H) | 1200 x 1180 x 2010 mm |
| Net weight | 255 kg |
| Gross weight | 295 kg |
Features
- Condensing unit on board with air cooling
- Blast chilling
- Shock freezing
- External sides and top in AISI 304 18/10 stainless steel th. 0,8mm (Scotch-Brite satin finish)
- Top in stainless steel th. 1 mm (Scotch-Brite satin)
- Inner in stainless steel with rounded corners
- Cavity with central drain for discharge of washing water
- Heating element in the door frame
- Ergonomic full-height door handle
- Heated core probe
- Pre-cooling function
- Automatic storing at end of blast chilling
- Removable stainless steel guides, can be positioned by interlocking (GN - EN)
- Capacitive TOUCH control with 2,8' high definition display placed on the door
- Indirect blowing electronic fans, efficient but gentle on food
- Copper-aluminum evaporator with cataphoresis anti-corrosion treatment
- High-ventilation evaporator to ensure the highest efficiency of the cooling system
- High performance copper-aluminum condenser
- Class T (ambient temperature +43°C)
