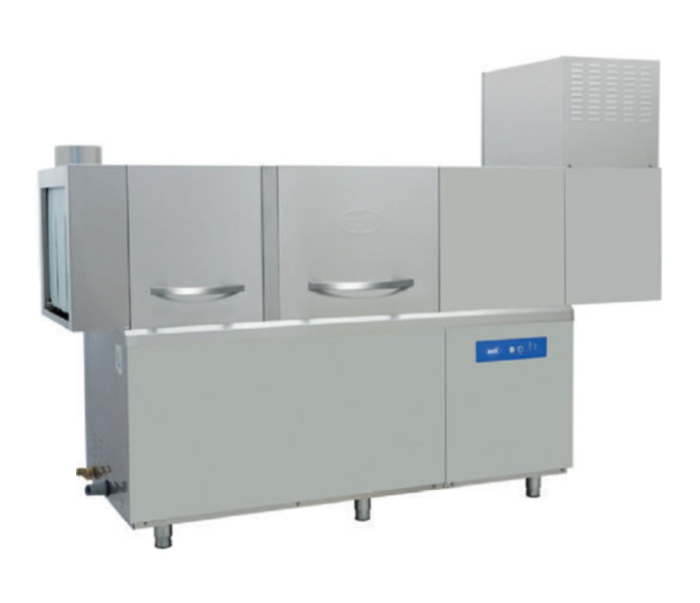

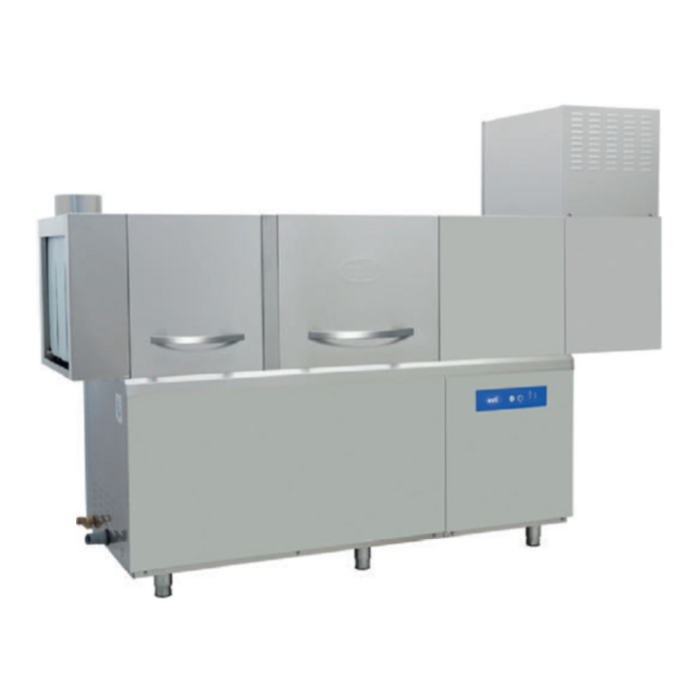

OZTI Conveyor Dishwasher (with Dryer) OBK-2000R

MODEL

OBK-2000R

Additional Information

More Information
Model	OBK-2000R
Brand	Ozti
Size (LxWxH) mm	800 x 2550 x 1880
Weight (KG)	340
Warranty	One Year Manufacturing Defect
Origin	Turkey

Model	OBK-2000R
Electric connection	400V 3NPE / 50Hz
Total rating	48 kW
Washing program number	-
Program times (seconds)	-
Washing capacity	Plate/hr: 2130 plate/assiette (maximum)
Washing capacity	Basket/hr: 133
Pre main washing/boiler tank capacity	60/90/18 litre
Temperature	Washing water: 55-60°C
	Rinsing water: 80-85°C (maximum)
	Water inlet: 50°C
Water inlet connection	3/4"
Pre washing pump power	0.72 kW
Main washing pump power	1,5 kW
Rinsing pump power	0.37 kW
Water inlet pressure	2-4 bar
Heat power	Washing: 9 kW
Heat power	Rinsing: 27 kW
Drying fan power	8 kW
Dirty water discharge connection	11/4" (Ø 42mm)
Maximum noise	80 dBA
Protection class	IPX5
Inclination	6°
Rack dimension	500 x 500 mm
Useful loading height	420 mm
Product dimension (L x W x H)	800 x 2550 x 1880mm
Net weight	328 (±5) kg
Gross weight	350 (±5) kg

Features

Stainless steel body including washing and boiler tank
Hygenic washing tank
133 racks per hour (rack dimension 500 x 500mm)
Effective drying through a high powered fan
3 litre water consumption per cycle
Automatic, user frinedly control panel
Continuous washing through conveyor system with dryer
Saves energy, detergent and water
Stainless steel washing arms
Adjustable feet for height optimization
Easy start up: one button to fill in and heat water in the boiler tank
Electrial components and cabling according to international standards and security regulations
Completely sealed to guarantee IPX5 water protection
Thermostat - Controlled rinse and washing temperature for efficient washing
Non-return - Check valve system
Washing temperature at 55-60ºC (water supply at a minimum of 2 bar and 50ºC)
Rinsing temperature at 80-85ºC (water supply at a minimum of 2 bar and 50°C)
