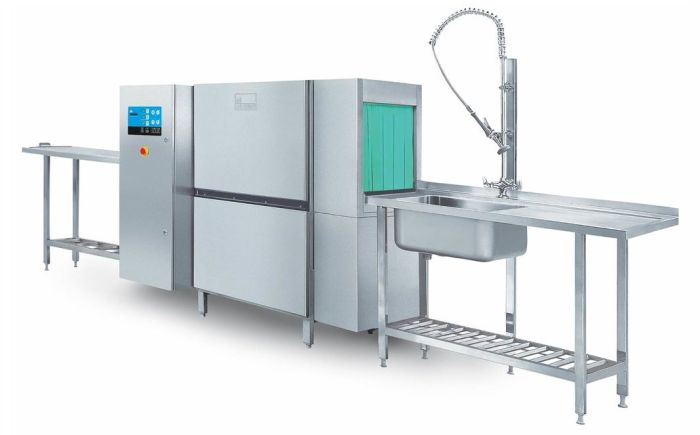

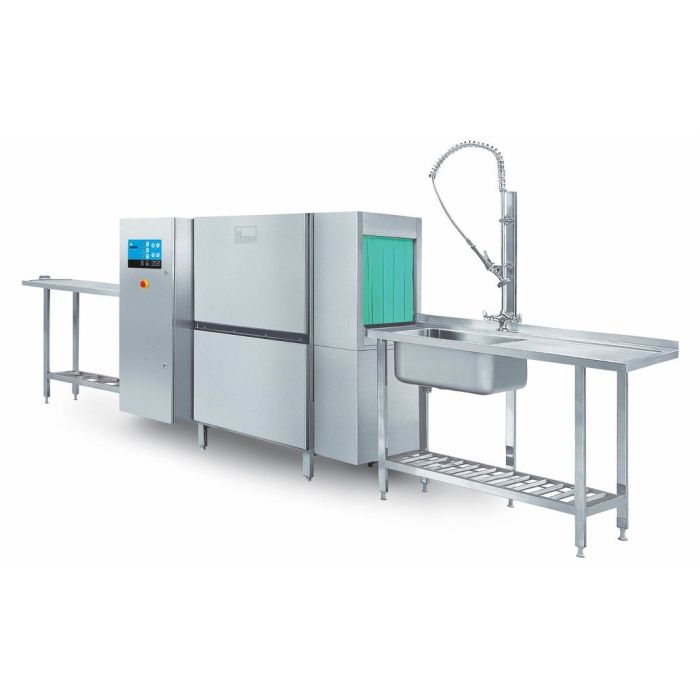

MEIKO Rack Type Dishwashing Machine K200M

MODEL
K200M

Login to view price

Additional Information
More Information
ModelK200M
BrandMeiko
Size (LxWxH) mm1550 x 830 x 1400
Capacity (â„“)90
Warranty One Year Manufacturing Defect
OriginGermany
Model K200M
Capacity 130 ~ 200 baskets/h
Voltage 3 NPE 400 V, 50 Hz
Water flow pressure Minimum 2.5 bar
Maximum 6.0 bar
Wash pump rating 1.7 kW
Pump throughout 1020 litre/min
Tank heating 13.9 kW
Tank capacity 90 litre
Final rinse water 360 litre/h
Booster heater For warm water supply or heat recovery system 16.7 kW
For cold water supply, no heat recovery 33 kW
Control Sensor film panel
Drain pipe work Central
Feeding tunnel 250 mm
Passing dimension (W x H) 510 x 450 mm
Machine dimension (L x W x H) 1550 x 830 x 1400 mm
Included Additional Accessory(ies)

Table end switch for discharge roller table

Brochure (905.31 kB)

Features

  • Electronic control panel and thermometers are conveniently located on the electrical cabinet door
  • Low water consumption
  • Noise reduction
  • Energy saving
  • Heat protection through double wall construction
  • Reilable operation
  • Long service life
  • V-shaped tank with rounded edges - easy to clean
  • Pump impeller and housing manufactured from heavy gauge stainless steel
    • Pump housing has no edges or corners
    • Large all-round suction area on tank floor
  • Catch peg system with transport overload protection
  • Machine operates independently of fluctuations in water pressure and creates air gap to prevent backflow
  • 1 universal basket VKV 50/1
  • 1 basket for small parts VKV 50/2
  • Emergency- off switch
  • CSS Plus system with booster pump 0.55kW

Manifold wash system

  • Optimized cross-section and nozzle arrangements.
  • Connection to rising pipe via a single stainless steel connection pipe inside the machine.
  • Benefit: Remarkably easy to insert and remove both the top and bottom portions of the manifold wash system in this rack-type dishwasher. Nothing penetrates the rear wall – for leakage protection even after years of service.
