Name: HOSHIZAKI Crescent Ice Makers KM-40C
Brand: Hoshizaki
SKU: HSZK-KM-40B

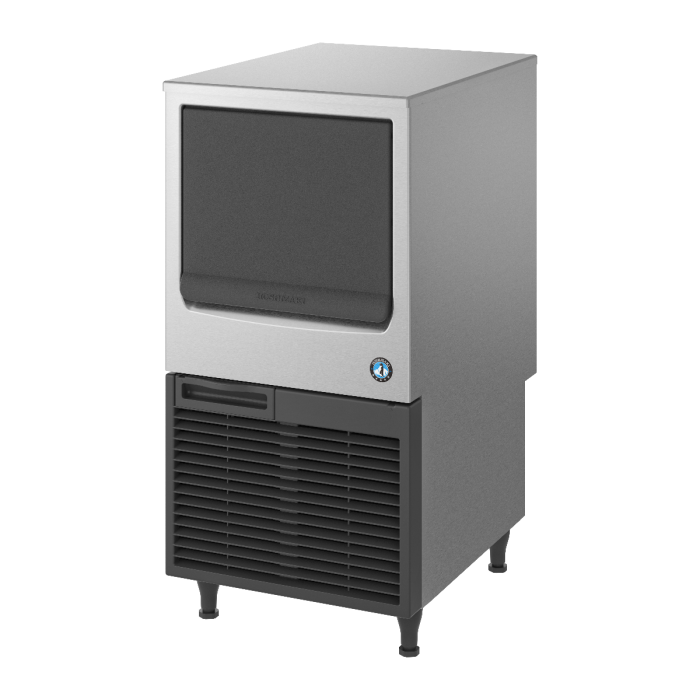

This Hoshizaki KM Edge ice maker is a self-contained ice maker producing up to 41 kg of clear, hard crescent ice per 24 hours.

Hoshizaki · Model: KM-40C

Pricing available on request

🚚 Delivery Optional 🔧 Installation Optional 🛡️ Warranty: One Year Manufacturing Defect 💬 WhatsApp support

Key Specifications

ModelKM-40C

BrandHoshizaki

Size (LxWxH) mm452 x 617 x 842

Weight (KG)40

Voltage220-240V / 50Hz

Warranty One Year Manufacturing Defect

OriginJapan

This Hoshizaki KM Edge ice maker is a self-contained ice maker producing up to 41 kg of clear, hard crescent ice per 24 hours.

Features

Model	KM-40C
AC supply voltage	1 phase / 220-240V / 50Hz
Running amperage	1.7A
Starting amperage	8.5A
Electrical consumption	278W
Refrigerant charge	R134a / 210g
Heat rejection	620W (533 kcal/h)
Ambient temperature	1 - 40°C
Water supply temperature	5 - 35°C
Water supply	0.07-0.8 Mpa / 7.25-116 PSI
Ice production per 24h (15mm)	Air temp 10°C ; Water temp 10°C	43 kg
	Air temp 21°C ; Water temp 15°C	41 kg
	Air temp 32°C ; Water temp 21°C	33 kg
Water consumption per 24H (At 21°C / WT 15°C)	0.09 m³
Ice production (At 21°C / WT 15°C)	Freezer cycle time	25 min
	Per cycle	0.78kg / 80pcs
Storage capacity	16 kg
Ice dimension (L x W x H)	37 x 30 x 13 mm
Dimension (L x W x H)	452 x 617 x 842 mm
Packed dimension (L x W x H)	535 x 705 x 955 mm
Net weight	40 kg
Gross weight	50 kg
