MANITOWOC H Series 700 Ice Cube Machine HDT0700A-251ZT

calcActive())">
MANITOWOC H Series 700 Ice Cube Machine HDT0700A-251ZT
Features
- SKU
- CFN-HDT0700A-251ZT
Manitowoc · Model: HDT0700A-251ZT
Pricing available on request
š Delivery Optional
š§ Installation Optional
š”ļø Warranty: Two Years Manufacturing Defects
š¬ WhatsApp support
Key Specifications
ModelHDT0700A-251ZT
BrandManitowoc
Size (LxWxH) mm762 x 865 x 1680
Voltage220-240V / 50Hz / 1 phase
Warranty Two Years Manufacturing Defects
OriginUnited States
Features
- Up to 321 kgs (708 lbs) daily ice production and only 30.00'' (76.00 cm) wide
- Use R-410A CFC-free refrigerant which lowers global warming potenial by 48%
- Easy access front facing evaporator
- All plastic interior, no exposed tubes or wires,Ā smooth rounded corners for fast easy wipe downs
- Food zone is sealed from above and on the back of the door panel with commercial grade rubber gaskets
- Water shield, distribution tube, pump, floats, andĀ trough removable by hand (no tools required)
- Top air discharge, transfers air discharge from the sides of the machine to the top by having theĀ louvered panel on the top of the machine ratherĀ than the sides
- Re-directs the hot air from the iceĀ machine toward the ceiling rather than directlyĀ into the working kitchen environment
- Easy to clean, reusableĀ air filter protectsĀ condenser from lint,Ā grease and dust

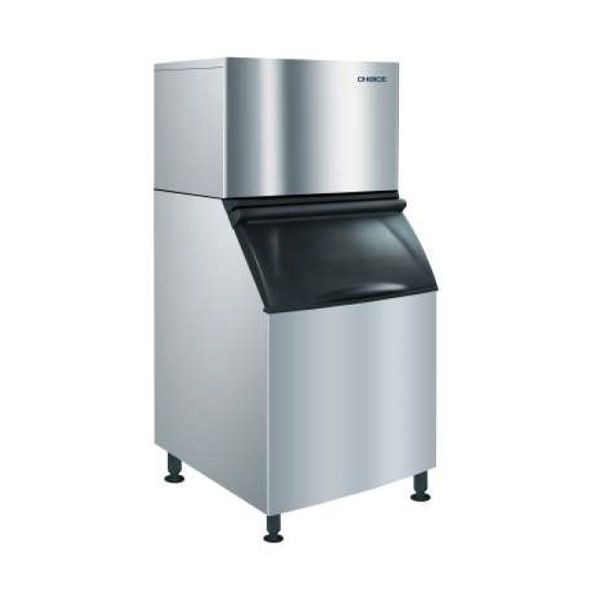

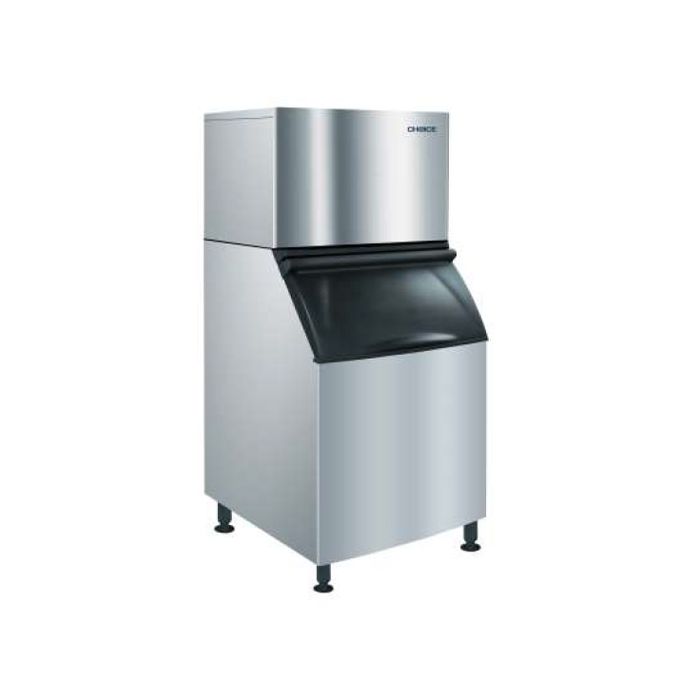

The photo shown above is H700 ice machine on H530 bin.
| ModelĀ | HDT0700A-251ZT | |
| Voltage | 220-240V / 50Hz / 1 phase | |
| BTU per hour | 9,000 (average), 13,900 (peak) | |
| Compressor | 3/4 HP (Nominal rating) | |
| Refrigerant | R-410A | |
| Ambient temperature range | 1.7°C to 43.3°C | |
| Water temperature range | 1.7°C to 32.2°C | |
| Water pressure (water in) | Minimum | 20 psi (137.9kPA) |
| Maximum | 80 psi (551.1kPA) | |
| Ice production 24 hours | 70°Air/ 50°F Water | 290 kg |
| 90°Air/ 70°F Water | 228 kg | |
| Power usage (100 lbs @ 90°Air / 70°F Water) | 5.36 kWh | |
| Water usage (45.4 kg of ice) | 71.8 litres | |
| Air-cooled total circuit ampacity | 8.6A | |
| Air-cooled total power consumption | 1121W | |
| Maximum fuse size | 20A | |
| Ice shape | Dice 22.2 x 22.2 x 22.2 mm | |
| Dimension (L x W x H) | 762 x 865 x 1680 mm | |
