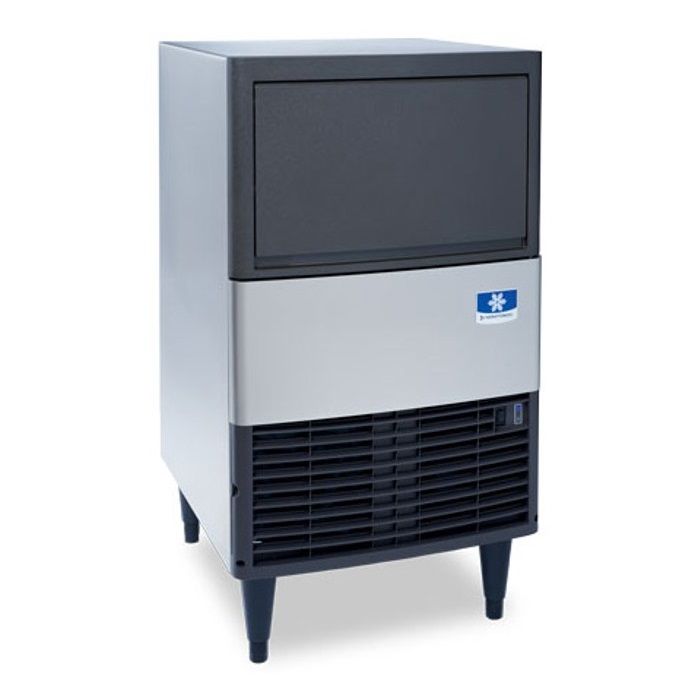

MANITOWOC Undercounter Air Dice Ice Machine UDE0080A-251Z

Features
SKU
CFN-UDE0080A-251Z
Email to a Friend

Manitowoc · Model: UDE0080A-251Z

The Manitowoc UDE0080A-251Z is an undercounter air dice ice machine for restaurants, cafés, hotels and food businesses. Request a quotation for pricing, delivery and installation, or see it at one of our six showrooms across Malaysia.

Pricing available on request

  • Delivery & installation Nationwide, by our technicians
  • Brand warranty One Year Manufacturing Defect
  • See it in person 6 showrooms in Malaysia
  • Kitchen planning With Business Doctor
Key Specifications
ModelUDE0080A-251Z
BrandManitowoc
Size (LxWxH) mm500 x 567 x 942
Warranty One Year Manufacturing Defect
OriginUnited States

Features

  • Compact size for easy placement under counters or as a stand-alone
  • Ideal for any small-volume ice need with ice maker and bin in one
  • Clean, crisp, coordinated interior
  • AlphaSan® in key internal components to extend time between cleanings
  • Flat, right-angle plug for easier installation in tight spaces
  • Attractive, durable stainless steel cabinet
  • Easy access door, slides up & out of the way
  • Patented cleaning and sanitizing technology
  • Easy access air filter designed for longer operation in greasy and dusty environments
  • Manitowoc’s proven vertical evaporator using proprietary technology is made in Manitowoc, WI
  • Front air intake and exhaust
  • Insulation foamed-in-place with CFC-FREE foam
Model UDE0080A-251Z
Ice type Dice
Production 46 kg Air: 21°C
Water: 10°C
32 kg Air: 32°C
Water: 21°C
Storage bin capacity 14 kg
Power Supply 208-230V/1/50Hz, Air-cooled 5.2A
Maximum Fuse/Circuit Breaker 15A
Compressor 1/4 HP
Refrigerant  R134A
BTUs/hr Average 2050
Peak 2500
Legs Adjustable, 15.24-17.78 cm
Dimension (L x W x H) 500 x 567 x 942 mm (include adjustable leg 152mm)
Operating Limits
Ambient temperature range 1.6°C to 43°C
Water temperature range 0.6°C to 32°C
Water pressure ice maker water in Minimum 20 psi (138 kPA)
Maximum 80 psi (551.1 kPA)
