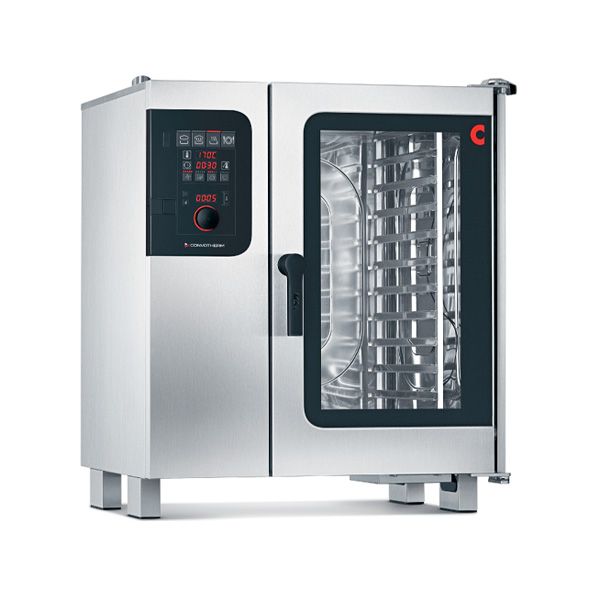

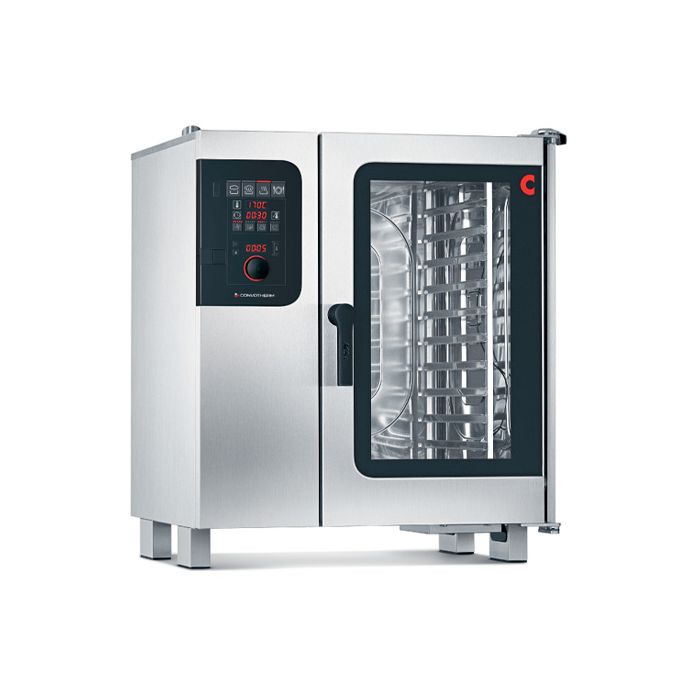

CONVOTHERM Combi oven Maxx Pro easyDial C4eD 10.10 ES
MODEL
C4eD 10.10 ES
Additional Information
| Model | C4eD 10.10 ES |
|---|---|
| Brand | Convotherm |
| Size (LxWxH) mm | 875 x 792 x 1058 |
| Weight (KG) | 119  |
| Voltage | 3N~ 400V 50/60Hz |
| Warranty | One Year Manufacturing Defect |
| Origin | Germany |
| Model | C4eD 10.10 ES | |
| Max. number of food containers | GN 1/1 10+1 | |
| Electrical supply | Voltage | 3N~ 400V 50/60Hz |
| Rated power consumption | 19.5 kW | |
| Rated power consumption with smoker | 19.8 kW | |
| Rated current | 28.1A | |
| Fuse rating | 32A | |
| Water connection | Water supply | 2 x G 3/4'' fixed connection, optionally including connecting pipe (min. DN13 / 1/2'') |
| Flow pressure | 150 - 600 kPa (1.5 - 6 bar) | |
| Max. water flow rate | 15 litres/min | |
| Product dimension (L x W x H) | 875 x 792 x 1058 mm | |
| Packing dimension (L x W x H) | 1100 x 1300 x 940 mm | |
| Net weight | 119 kg | |
| Gross weight | 152 kg | |
easyDial user interface
- Central control unit, Convotherm-Dial (C-Dial)
- Digital display
- Regenerating function – regenerates products to their peak level
- 99 cooking profiles each containing up to 9 steps
Features
- Steam generated by injecting water into the oven cavity
- ACS+ operating modes: steam, combi-steam, convection
- ACS+ (Advanced Closed System +) operating modes:
- Steam (30-130°C) with guaranteed steam saturation
- Combi-steam (30-250°C) with automatic moisture control
- Convection (30-250 °C) with optimized heat transfer
- ACS+ extra functions:
- Crisp&Tasty – 5 moisture-removal settings
- BakePro – 5 levels of traditional baking
- HumidityPro – 5 humidity settings
- Controllable fan – 5 speed settings
- HygienicCare: Hygienic handles
- ConvoClean: Fully automatic cleaning system, with optional single-dose dispensing
- TriColor indicator ring – indicates the current operating status
- Disappearing door with triple glazing: more space and greater safety at work (available optionally at an additional charge)
- Core temperature probe
- USB port integrated in the control panel
- HACCP data storage
- Preheat and cool down function
