In stock

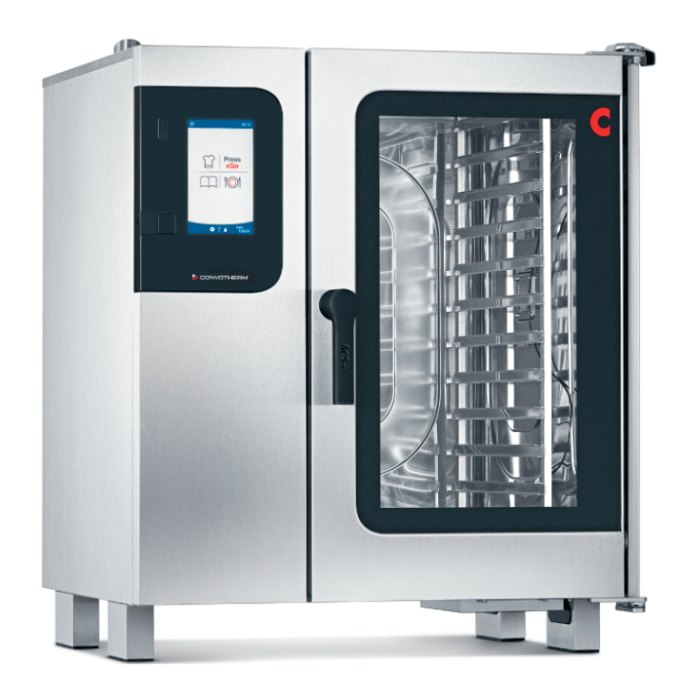

CONVOTHERM 4 Electric Spritzer 10.10 easyTouch With Disappearing Door & Auto Clean C4ET10.10 ESDD

MODEL
C4ET10.10 ESDD

Login to view price

Additional Information
More Information
ModelC4ET10.10 ESDD
BrandConvotherm
Size (LxWxH) mm966 x 858 x 1101
Weight (KG)139
Voltage3~ 230V 50/60Hz
Warranty One Year Manufacturing Defect
OriginGermany
Model C4ET10.10 ESDD
Max. number of food containers GN 1/1 10+1
Electrical supply Voltage 3~ 230V 50/60Hz
Rated power consumption 19.3 kW
Rated current 48.5 A
Fuse rating 50 A
Water connection Water supply 2 x G 3/4'' fixed connection, optionally including connecting pipe (min. DN13 / 1/2'')
Flow pressure 150 - 600 kPa (1.5 - 6 bar)
Max. water flow rate 15 l/min
Product dimension (L x W x H) 966 x 858 x 1101 mm
Packing dimension (L x W x H) 1100 x 940 x 1280 mm
Net weight 139 kg
Gross weight 169 kg
Spec Sheet (949.15 kB)
User Manual (3.12 MB)

easyTouch user interface

  • 9" full-touch screen
  • Press&Go – automatic cooking with quick-select buttons
  • TrayTimer – oven-load management for different products at the same time
  • Regenerate+ – flexible multi-mode retherm function
  • ecoCooking – energy-save function
  • Low-temperature cooking / Delta-T cooking
  • Cook&Hold – cook and hold in one process
  • 399 cooking profiles each containing up to 20 steps
  • On-screen help with topic-based video function
  • Start-time preset

Features

  • Steam generated by injecting water into the cooking chamber
  • ACS+ operating modes: Steam, Combi-steam, Convection
  • ACS+ (Advanced Closed System +) operating modes:
    • Steam (30-130°C) with guaranteed steam saturation
    • Combi-steam (30-250°C) with automatic humidity adjustment
    • Hot air (30-250°C) with optimized heat transfer
  • ACS+ extra functions:
    • Crisp&Tasty – 5 moisture-removal settings
    • BakePro – 5 levels of traditional baking
    • HumidityPro – 5 humidity settings
    • Controllable fan – 5 speed settings
  • HygienicCare – food safety thanks to antibacterial surfaces:
    • easyTouch control panel
    • Door handle and recoil hand shower
  • ConvoClean+ fully automatic cleaning system with eco, regular and express modes, including optional single-measure dispensing
  • Ethernet interface (LAN)
  • TriColor indicator ring – indicates the current operating status
  • Disappearing door: more space and greater safety at work (optionally available for an extra charge)
  • Multi-point core temperature probe
  • Door handle with safety latch and slam function
  • USB port integrated in the control panel
  • Data storage for HACCP and pasteurization figures
  • Preheat and cool down function
