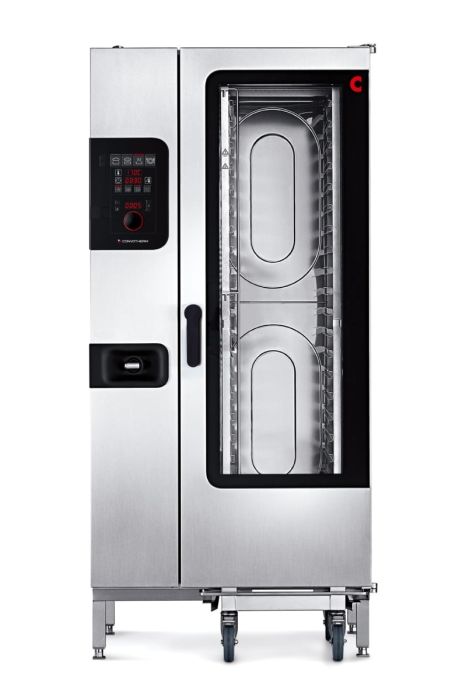

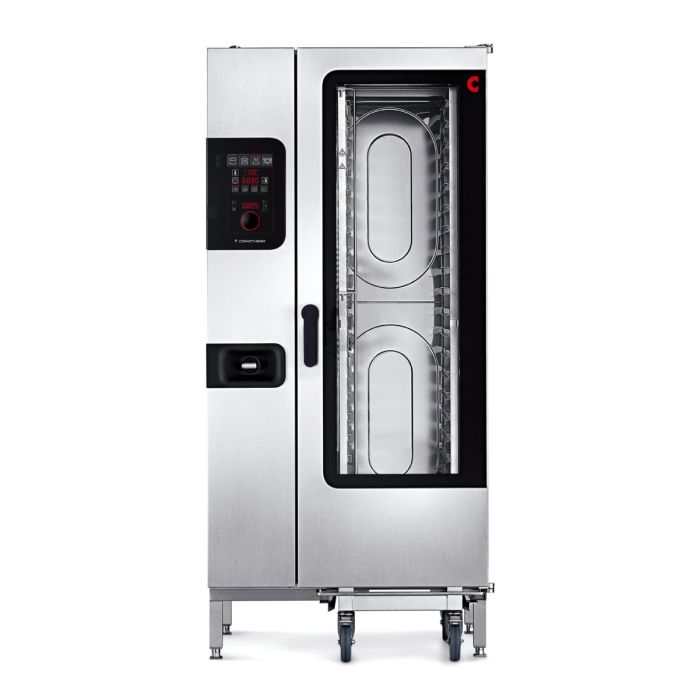

CONVOTHERM 4 Electric Boiler 20.10 easyDial With Disappearing Door & Semi-automatic Clean C4eD20.10 EB

MODEL

C4eD20.10 EB

Additional Information

More Information
Model	C4eD20.10 EB
Brand	Convotherm
Size (LxWxH) mm	892 x 240 x 1086
Weight (KG)	285
Voltage	3N~ 400V 50/60Hz
Warranty	One Year Manufacturing Defect
Origin	Germany

Model	C4eD20.10 EB
Max. number of food containers	GN 1/1 20
Electrical supply	Voltage	3N~ 400V 50/60Hz
	Rated power consumption	38.9 kW
	Rated current	56.2 A
	Fuse rating	63 A
Water connection	Water supply	2 x G 3/4'' fixed connection, optionally including connecting pipe (min. DN13 / 1/2'')
	Flow pressure	150 - 600 kPa (1.5 - 6 bar)
	Max. water flow rate	15 litres/min
Product dimension (L x W x H)	892 x 240 x 1086 mm
Packing dimension (L x W x H)	1165 x 2150 x 970 mm
Net weight	265 kg
Gross weight	305 kg

easyDial user interface

Features

Steam generated by high-performance boiler outside the cooking chamber
ACS+ operating modes: Steam, Combi-steam, Convection
ACS+ (Advanced Closed System +) operating modes:
- Steam (30-130°C) with guaranteed steam saturation
- Combi-steam (30-250°C) with automatic moisture control
- Convection (30-250 °C) with optimized heat transfer
ACS+ extra functions:
- Crisp&Tasty – 5 moisture-removal settings
- BakePro – 5 levels of traditional baking
- HumidityPro – 5 humidity settings
- Controllable fan – 5 speed settings
HygienicCare: Hygienic handles
Semi-automatic cleaning system
TriColor indicator ring – indicates the current operating status
Disappearing door: more space and greater safety at work
Core temperature probe
USB port integrated in the control panel
HACCP data storage
Preheat and cool down function
