CONVOTHERM 4 Electric Boiler 10.10 easyDial With Disappearing Door & Auto Clean C4ED10.10 EBDD

Skip to the end of the images gallery

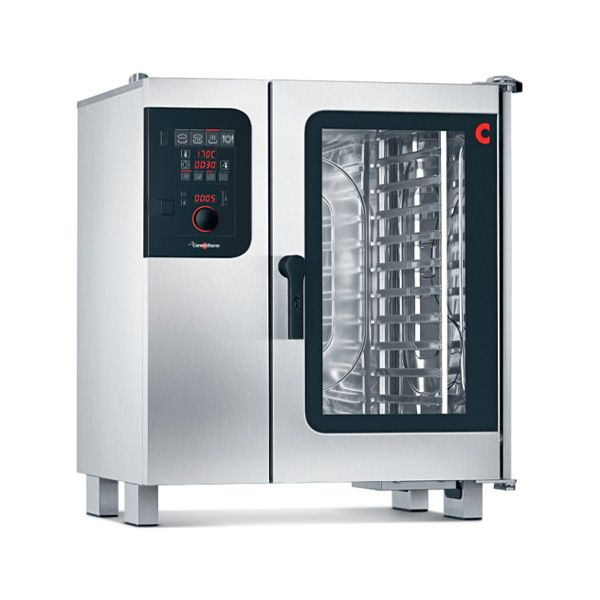

main product photo

Skip to the beginning of the images gallery

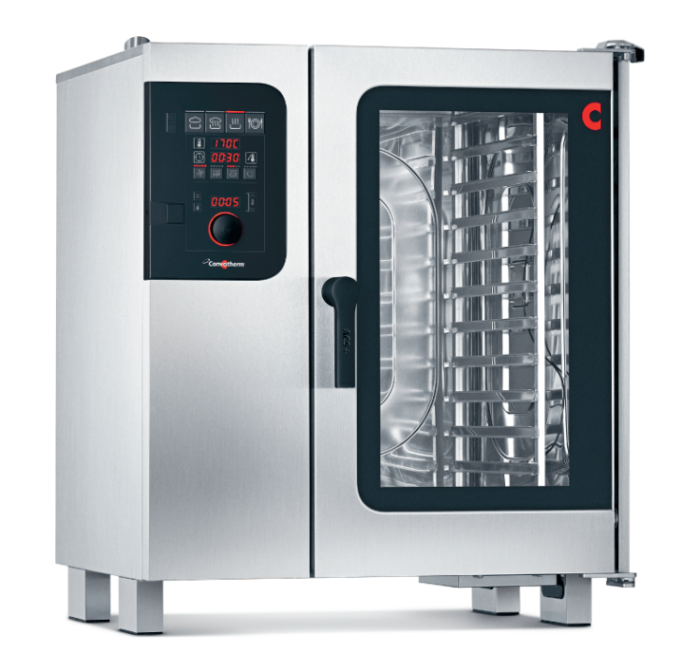

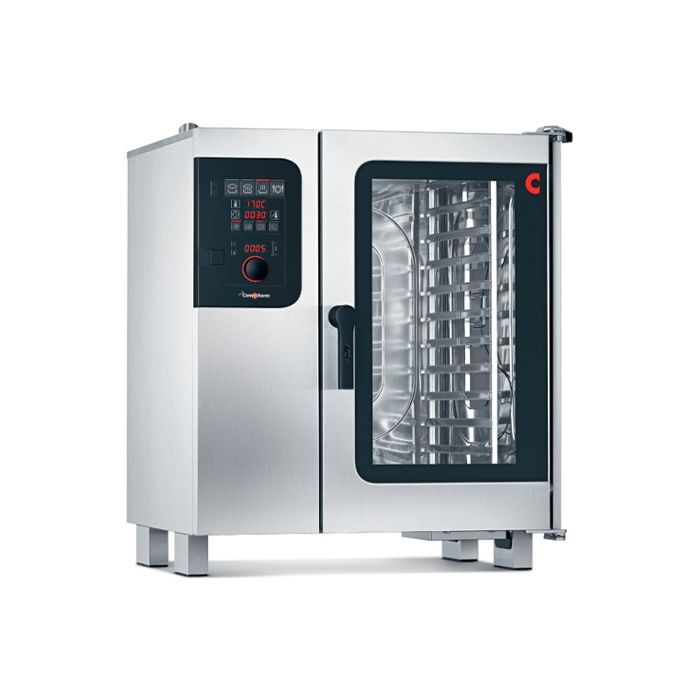

CONVOTHERM 4 Electric Boiler 10.10 easyDial With Disappearing Door & Auto Clean C4ED10.10 EBDD

Be the first to review this product

MODEL

C4ED10.10 EBDD

Additional Information

More Information
Model	C4ED10.10 EBDD
Brand	Convotherm
Size (LxWxH) mm	966 x 858 x 1158
Weight (KG)	145
Voltage	3~ 230V 50/60Hz
Warranty	One Year Manufacturing Defect
Origin	Germany

Model	C4ED10.10 EBDD
Max. number of food containers	GN 1/1 10+1
Electrical supply	Voltage	3~ 230V 50/60Hz
	Rated power consumption	19.3 kW
	Rated current	48.5 A
	Fuse rating	50 A
Water connection	Water supply	2 x G 3/4'' fixed connection, optionally including connecting pipe (min. DN13 / 1/2'')
	Flow pressure	150 - 600 kPa (1.5 - 6 bar)
	Max. water flow rate	15 l/min
Product dimension (L x W x H)	966 x 858 x 1158 mm
Packing dimension (L x W x H)	1100 x 940 x 1280 mm
Net weight	145 kg
Gross weight	175 kg

easyDial user interface

All functions are set in one operating level
Central control unit, Convotherm-Dial (C-Dial)
Digital display
Regenerating function – regenerates products to their peak level
99 cooking profiles each containing up to 9 steps

Features

Steam generated by high-performance boiler outside the cooking chamber
ACS+ operating modes: Steam, Combi-steam, Convection
ACS+ (Advanced Closed System +) operating modes:

Steam (30-130°C) with guaranteed steam saturation
Combi-steam (30-250°C) with automatic humidity adjustment
Hot air (30-250°C) with optimized heat transfer

ACS+ extra functions:

Crisp&Tasty – 5 moisture-removal settings
BakePro – 5 levels of traditional baking
HumidityPro – 5 humidity settings
Controllable fan – 5 speed settings

HygienicCare – food safety thanks to antibacterial surfaces:

easyDial control panel
Door handle and recoil hand shower

Semi-automatic cleaning system
TriColor indicator ring – indicates the current operating status
Disappearing door: more space and greater safety at work (optionally available for an extra charge)
Multi-point core temperature probe
Door handle with safety latch and slam function
USB port integrated in the control panel
Data storage for HACCP and pasteurization figures
Preheat and cool down function
