In stock

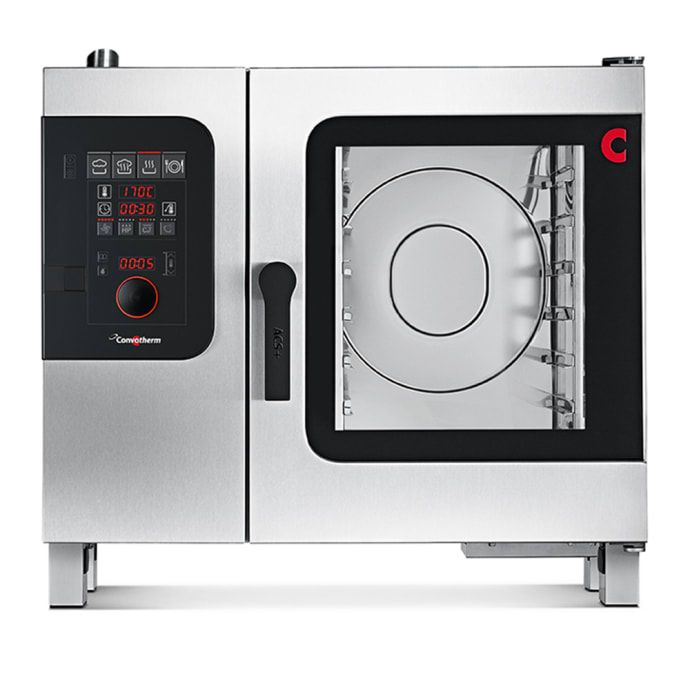

CONVOTHERM 4 Electric Boiler 6.10 easyDial With Disappearing Door & Auto Clean C4ED6.10 EBDD

MODEL
C4ED6.10 EBDD
Additional Information
More Information
ModelC4ED6.10 EBDD
BrandConvotherm
Size (LxWxH) mm966 x 858 x 829
Weight (KG)123
Voltage3~ 230V 50/60Hz
Warranty One Year Manufacturing Defect
OriginGermany
Model C4ED6.10 EBDD
Max. number of food containers GN 1/1 6+1
Electrical supply Voltage 3~ 230V 50/60Hz
Rated power consumption 10.9 kW
Rated current 27.4 A
Fuse rating 35 A
Water connection Water supply 2 x G 3/4'' fixed connection, optionally including connecting pipe (min. DN13 / 1/2'')
Flow pressure 150 - 600 kPa (1.5 - 6 bar)
Max. water flow rate 15 l/min
Product dimension (L x W x H) 966 x 858 x 829 mm
Packing dimension (L x W x H) 1100 x 940 x 1010 mm
Net weight 123 kg
Gross weight 148 kg
User Manual (3.12 MB)
Spec Sheet (798.24 kB)

easyDial user interface

  • All functions are set in one operating level
  • Central control unit, Convotherm-Dial (C-Dial)
  • Digital display
  • Regenerating function – regenerates products to their peak level
  • 99 cooking profiles each containing up to 9 steps

Features

  • Steam generated by high-performance boiler outside the cooking chamber
  • ACS+ operating modes: Steam, Combi-steam, Convection
  • ACS+ (Advanced Closed System +) operating modes:
    • Steam (30-130°C) with guaranteed steam saturation
    • Combi-steam (30-250°C) with automatic humidity adjustment
    • Hot air (30-250°C) with optimized heat transfer
  • ACS+ extra functions:
    • Crisp&Tasty – 5 moisture-removal settings
    • BakePro – 5 levels of traditional baking
    • HumidityPro – 5 humidity settings
    • Controllable fan – 5 speed settings
  • HygienicCare – food safety thanks to antibacterial surfaces:
    • easyDial control panel
    • Door handle and recoil hand shower
  • Semi-automatic cleaning system
  • TriColor indicator ring – indicates the current operating status
  • Disappearing door: more space and greater safety at work (optionally available for an extra charge)
  • Multi-point core temperature probe
  • Door handle with safety latch and slam function
  • USB port integrated in the control panel
  • Data storage for HACCP and pasteurization figures
  • Preheat and cool down function
