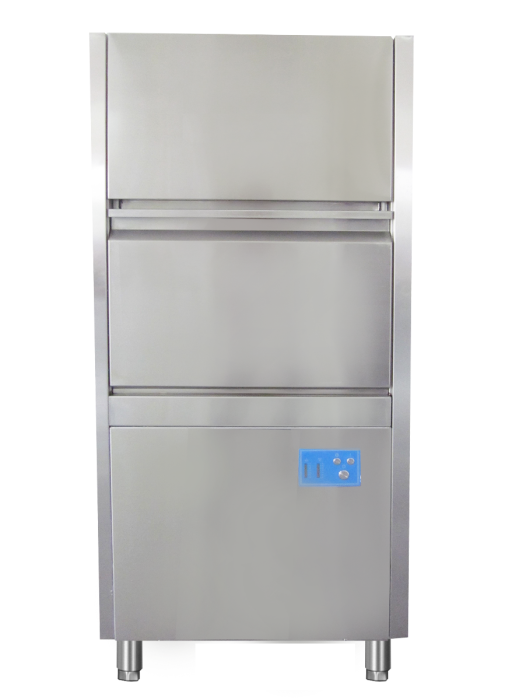

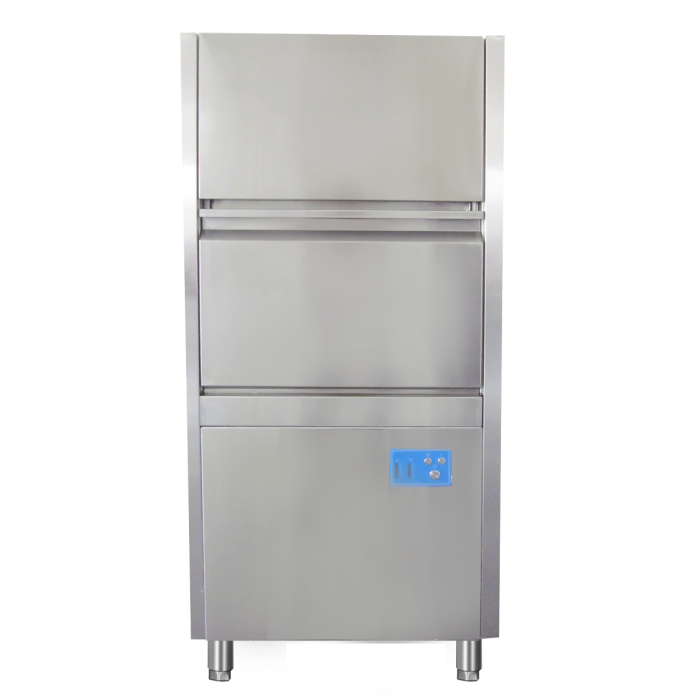

VICTORIA Multi Utensil Washer (17.7kw/400V/50Hz/3ph) VT-UW1
MODEL
VT-UW1
Additional Information
| Model | VT-UW1 |
|---|---|
| Brand | Victoria |
| Size (LxWxH) mm | 1030 x 895 x 1853 |
| Weight (KG) | 268 |
| Voltage | 400V/50Hz/3ph |
| Warranty | One Year Manufacturing Defect |
| Origin | China |
| Model | VT-UW1 |
| Capacity | 10~30 racks/hr |
| Tank capacity | 95L |
| Booster tank capacity | 16L |
| Water consumption | 3.6L/rack |
| Wash pump power | 4 kW |
| Wash tank heater | 4.5 kW |
| Booster heater | 9 kW |
| Rinse pump power | 0.15 kW |
| Electrical Loading | 17.7 kW |
| Power Supply | 400V/50Hz/3ph |
| Cable | 8 mm² |
| Water pressure | ≥ 0.5kg/cm² |
| Exhaust Pipe | Ø175 mm |
| Inlet | ¾” |
| Outlet | 1 ½” |
| Rack size | 820 x 670 mm |
| Loading dimension | 840 x 710 mm |
| Maximum washing height | 660 mm |
| Door opening height | 2037 mm |
| Dimension (L x W x H) | 1030 x 895 x 1853 mm |
| Net weight | 268 kg |
