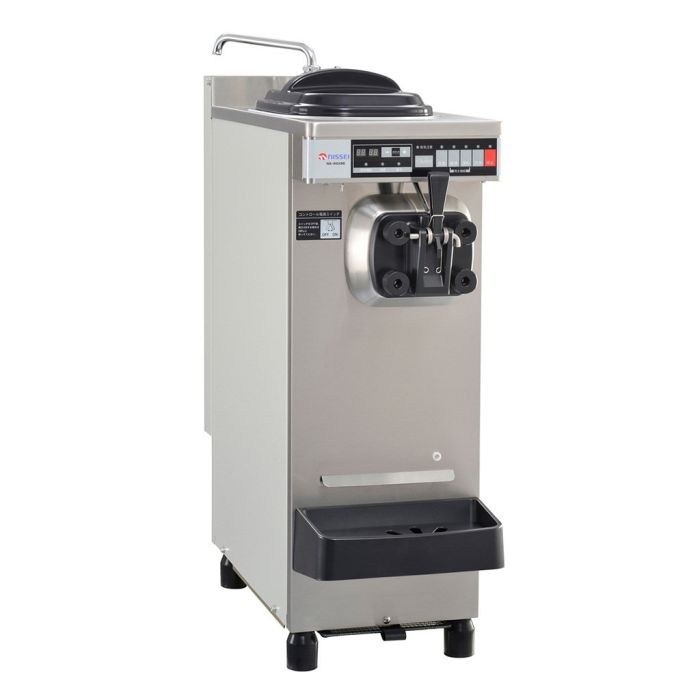

NISSEI Soft Server NA9424AEC

MODEL

NA9424AEC

Additional Information

More Information
Model	NA9424AEC
Brand	Nissei
Size (LxWxH) mm	298 x 792 x 924
Weight (KG)	84
Voltage	380V / 50Hz / Three phase
Warranty	One Year Manufacturing Defect
Origin	Japan

Details

Model	NA9424AEC
Production capacity (100cc per serving)	240 servings/hour (at room temperature 27°C)
Cylinder capacity	2 L
First mix input	1.3 L
Mix tank capacity	4 L
Rated power supply	380V / 50Hz / Three phase
Rated output	Compressor motor	750W
	Dasher motor	400W
	Impeller motor	6W
	Fan motor	2 x 32W
Rated current	3.4A
Cooling system	Air-cooled
Refrigerant	R-404A
Dimension (L x W x H)	298 x 792 x 924 mm
Weight	84 kg

Attachment

Description

Features

Automatically heating and pasteurizing soft serve mix
Equipped with the “impeller mechanism” to maintain temperature and quality of soft serve mix inside the mix tank
Innovative technique adopted for the freezing cycle
High performance
Space saving
Combination of main controller using microcomputer
Easy to disassemble for cleaning purpose and overhaul
Presented with digital display
Strong durability with long lasting life span

Easy Operation For Serving

1. When the “PASTEURIZING” button is pressed, soft serve mix in the mix tank and cylinder is heated and pasteurized to the same extent of pasteurization for milk (at 68℃ for 30 minutes) under the Japanese Food Sanitation Law.

2. When the PASTEURIZING mode is completed, the STANDBY mode starts for cooling mix.

3. Press the “RUN” button to start sales.

4. When mix in the mix tank is low, the “REPLENISH MIX“ lamp flashes.
