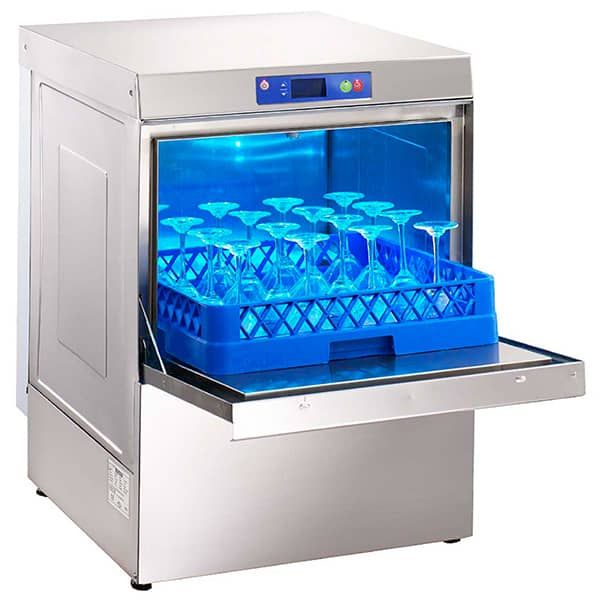

OZTI Undercounter Glasswasher OBY-40D

MODEL

OBY-40D

Additional Information

More Information
Model	OBY-40D
Brand	Ozti
Size (LxWxH) mm	475 x 550 x 765
Weight (KG)	40
Warranty	One Year Manufacturing Defect
Origin	Turkey

Model	OBY-40D
Electric connection	230V-NPE / 50Hz
Total rating	3.3 kW
Washing program number	3
Program times (seconds)	107/137/197
Washing capacity	Glass/hr: 500 glass/verre (maximum)
Washing capacity	Basket/hr: 33/26/18
Tank capacity	Washing: 18.4 litre
Tank capacity	Boiler: 2.8 litre
Temperature	Washing water: 55-60°C
	Rinsing water: 80-85°C (maximum)
	Water inlet: 50°C
Water inlet connection	3/4"
Washing pump power	0.27 kW
Water inlet pressure	2-4 bar
Heat power (Washing/Rinsing)	2/3 kW
Dirty water discharge connection	3/4" (Ø 28mm)
Maximum noise	70 dBA
Protection class	IPX5
Inclination	6°
Rack dimension	400 x 400 mm
Useful loading height	330 mm
Product dimension (L x W x H)	475 x 550 x 765 mm
Net weight	35 (±5) kg
Gross weight	40 (±5) kg

Features

Stainless steel pressed body and inclined washing tank
Drawn tank base housing filter (Hygenic)
30 racks per hour (rack dimension 400 x 400mm)
2.5 litre water consumption per cycle
Automatic, user friendly electromechanical control panel
1 washing programme - cycle 120 seconds
Saves energy, detergent and water
Washing arms in reinforced polypropylene
Adjustable feet for height optimization
Easy start up: one button to fill in and heat water in the boiler tank
Electrical components and cabling according to international standards and security regulations
Completely sealed body to guarantee IPX5 water protection
Thermostat - controlled rinse and washing temperature for efficient washing
Non-return - check valve system
Washing temperature at 50-60ºC (water supply at a minimum of 2 bar and 50ºC)
Rinsing temperature at 80-85°C (water supply at a minimum of 2 bar and 50ºC)
