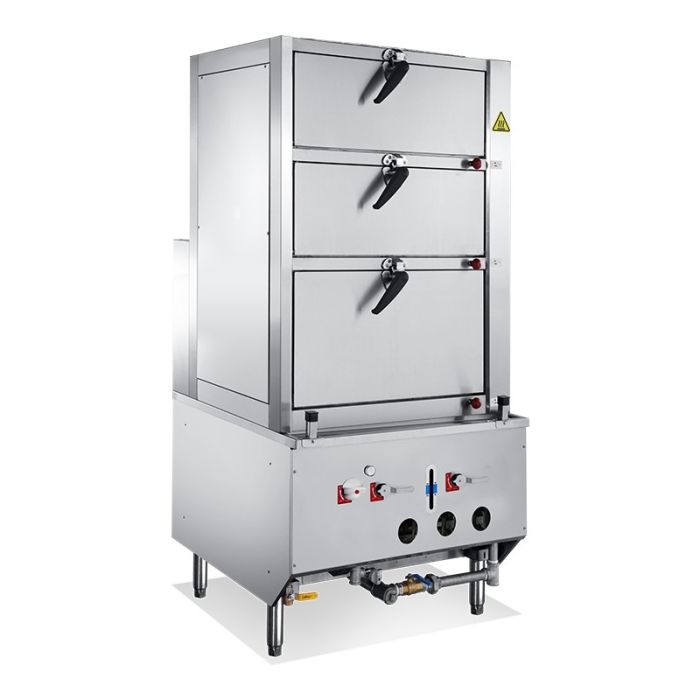

NEWWAY Gas Environmental Three Deck Steam Cabinet SCH-900-D

MODEL
SCH-900-D

Login to view price

Additional Information
More Information
ModelSCH-900-D
BrandNewway
Size (LxWxH) mm900 x 950 x 1900
Warranty One Year Manufacturing Defect
OriginChina
Model SCH-900-D
Gas source LPG / NG
Gas rated pressure 2.8kP / 2.0kPa
Burner rating 40 kW
BTU 138,000 BTU
Water inlet 1/2" (DN15)
Drainage pipe 1" (DN25)
Gas inlet 3/4" (DN20)
Dimension (L x W x H) 900 x 950 x 1900 mm

Features

  • Extra safe operating system: equipped with electromagnetic valve flame failure device on each individual burner
  • Main flame will cut off in less than 2 seconds when pilot light encounter burning failure
  • Equipped with pre-mixing turbo jet burners improve on thermal efficiency and reduce on emission. Under normal operation, only takes around 8 minutes to generate continuous system.
  • Standard comes with water level detection and overheat sensor to prevent the unit overheats and prolongs the life span of chamber
  • Equipped with water conditioner to eliminate the formation of limescale
  • Rotary lock for secure shut to eliminate steam leakage
  • Multi shelvings for mass production
  • Equipped with steam ON/OFF valve to control steam flow
  • Slanted top design in each deck to prevent condense dripping
  • Plug in door gasket for easy replacement
  • Two steps open door design helps prevent steam burn
