In stock

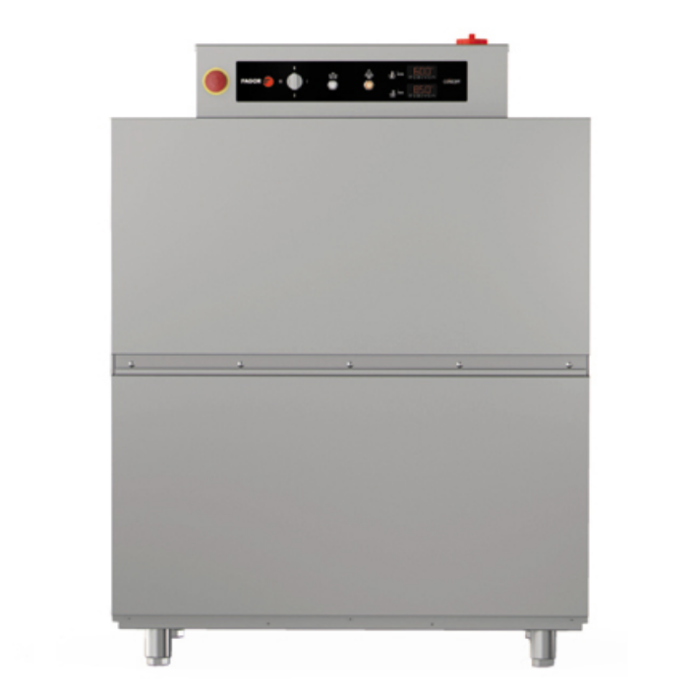

FAGOR Conveyor Dishwasher CCO-120 D

MODEL
CCO-120 D

Login to view price

Additional Information
More Information
ModelCCO-120 D
BrandFagor
Size (LxWxH) mm1180 x 790 x 1560
Weight (KG)211
Voltage400V - 3N
Warranty One Year Manufacturing Defect
OriginSpain
Model CCO-120 D
Electric power 28.55 kW
Heating power 27 kW
Voltage 400V - 3N
Amperage 46.9 A
Frequency 50Hz
Water pressure H2O: 200-400kPa(2-4bar)
Water max consumption 1.75 litre/rack
210 litre/hour
Electronic temperature control Wash (50 to 65°C)
Rinse (70 to 85°C)
No.of washing branches Upper: 4
Lower: 4
Machine dimension (L x W x H) 1180 x 790 x 1560 mm
Packaging dimension (L x W x H) 1530 x 955 x 1950 mm
Net weight 211 kg
Gross weight 306 kg
Spec Sheet (295.38 kB)
Catalogue (0.98 MB)

Features

  • All the main parts are manufactured in AISI-304 anti-corrosion stainless steel
  • Upwards-opening double panel door
  • Tank tray filters are easy to access and remove for cleaning and access to the tank
  • Safety filter for pump suction
  • Rinsing boiler with heat insulation
  • Electrical panel designed for easy connection of dosers
  • Emergency stop button incorporated
  • Washing arms easily removable as a set
  • Rinse jets easily dismountable and removable
  • System of electronic regulation of speeds by means of frequency shifter
  • Pressure regulator for flow control
  • Open door blocking system
  • IPX4 protection system
  • System for detection of blockage of conveyor carriage
  • Automatic reverse function
  • High-power washing system
  • Auto-timer which deactivates the conveyor motor after a pre-set period of inactivity (10 minutes)
