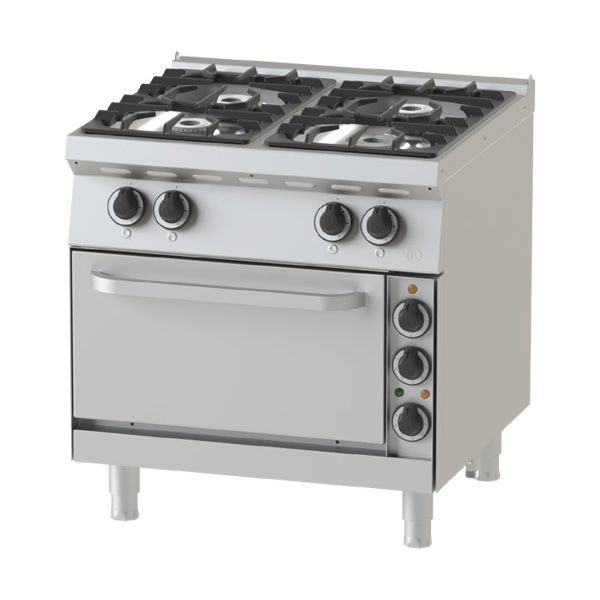

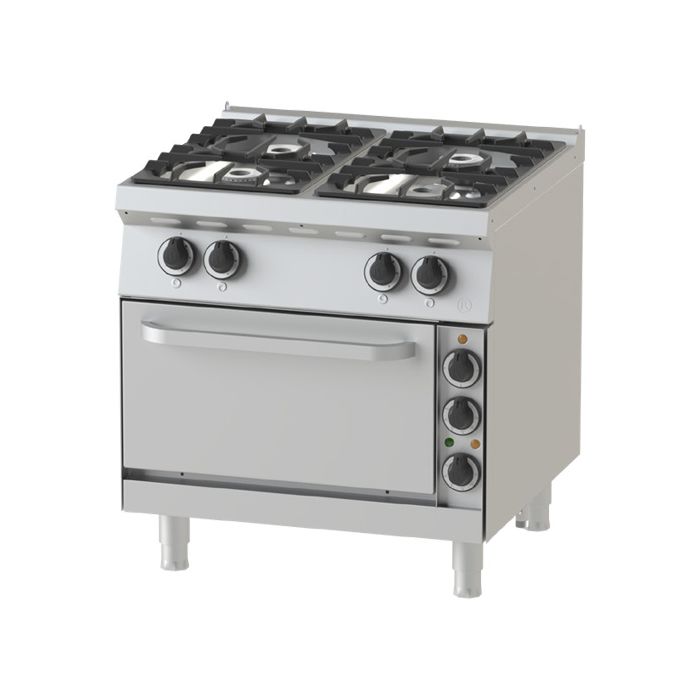

NAYATI Gas - Open Burner with Electric Oven 2/1 GN, 4 Burners NGR 8-75 EOV (ME)

Name: NAYATI Gas - Open Burner with Electric Oven 2/1 GN, 4 Burners NGR 8-75 EOV (ME)
Brand: Nayati
SKU: NYT-NGR 8-75 EOV (ME)
Price: 17230 MYR
Availability: InStock

Be the first to review this product

MODEL

NGR 8-75 EOV (ME)

Additional Information

More Information
Model	NGR 8-75 EOV (ME)
Brand	Nayati
Size (LxWxH) mm	800 x 750 x 850/910
Weight (KG)	118
Warranty	One Year Manufacturing Defect
Origin	Indonesia

Details

Model	NGR 8-75 EOV (ME)
Gas Power Rating
Heat input total	LPG/Natural Gas 28.5 kW, 6 kW - 400V, 3NPE AC /50-60Hz
No. of burners	4
Control type	Open burner : High - low power control
Control type	Oven: Modulating temperature control
Gas type options	LPG G30, G31 Natural Gas G20, G25
Total connected load	6 kW
Gas connections	DN 20 (3/4”)
Heat & Steam Emissions
Direct heat emission	7.6 kW
Latent heat emission	3.16 kW
Steam emission	4.64 kg/h
Dimension and Weight
Cooking zones	Open burner : 2 x 305 x 620 mm
Cooking zones	Oven : 575 x 666 mm
Product dimension (L x W x H)	800 x 750 x 850/910 mm
Packing dimension (L x W x H)	830 x 780 x 1030 mm
Net weight	118 kg
Gross weight	136 kg

Attachment

Description

Features

Usable for boiling, steaming, frying, braising, simmering and steam frying
Oven module usable for roasting and baking
Oven is designed gasket-free with deep drawn chamber removing the need for periodic replacement
Powered with a 4 hobs, 2 sets of 3.5 kW and 7.5 kW cast iron open burner
Static 2/1 GN electric oven is powered with 6 kW incoloy heater 2/1 GN cavity and reflective AISI chamber to improve thermal efficiency
Fully-welded basin for hygiene
Cast iron pot holder with long fin to support various size of pot or pan
Equipped with flame failure device
Optimized pan diameter for 3.5 kW burner is between 240-380mm
Optimized pan diameter for 7.5 kW burner is between 300-500mm
Made of AISI 304 with 1.5 mm top thickness, manual ignited, fully welded basin for hygiene purpose, galvanized coated cast iron burner
