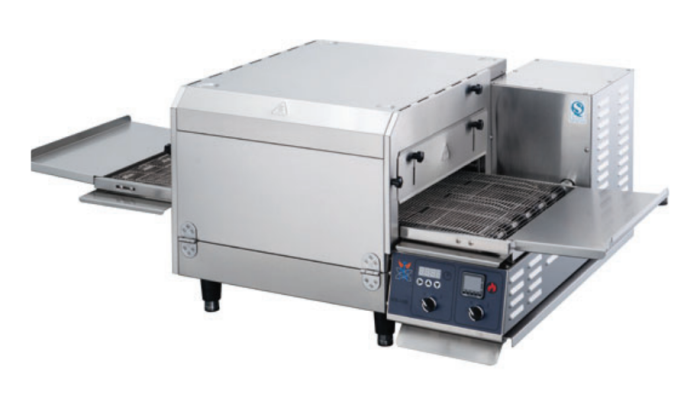

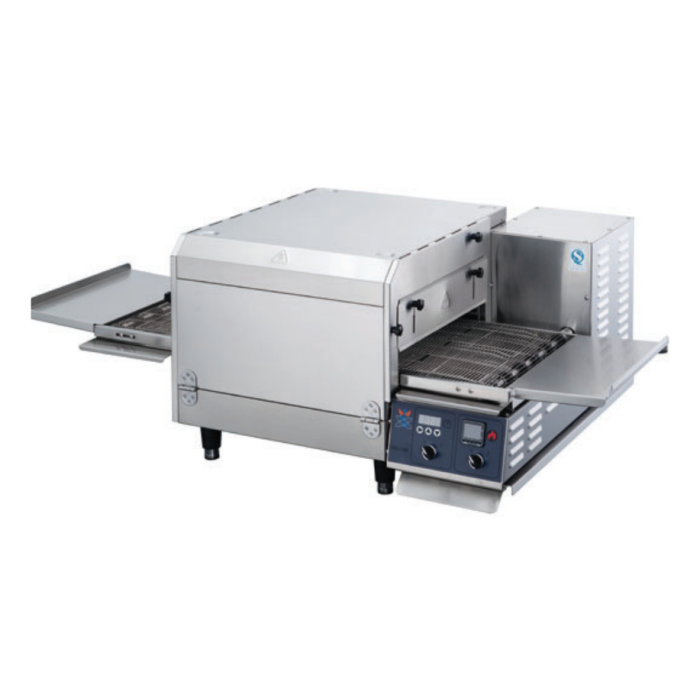

MODELUX Electric Conveyor Oven NTE-1620

MODEL

NTE-1620

Additional Information

More Information
Model	NTE-1620
Brand	Modelux
Size (LxWxH) mm	1400 x 821 x 511
Weight (KG)	119
Voltage	220-240V~
Warranty	One Year Manufacturing Defect
Origin	China

Model	NTE-1620
Temperature range	50°C ~ 300°C
Time range	1 minute 25 seconds ~ 11 minutes
Power	6.7 kW
Voltage	220-240V~
Voltage	380-415V, 3-phase
Frequency	50/60Hz
IP rating	IPX3
Dimension (L x W x H)	1000 (1400mm includes extension plates) x 821 x 511 mm

Features

Hot air impingement
Mixed flow wheel combines the best of axial and centrigal properties, generating high velocity air to surround food for rapid heat transfer and doneness
Adjustable air fingers on top and bottom, which make heat adjustable and controlledby zoning
Stackable up to 2 units high
With PID microprocessor controller, baking temperature and time are always under perfect control
Stainless steel front, sides, top and interior
528mm long cooking chamber with 436mm belt
Furnished with 4" heavy duty legs
Countertop design
Toolless-open access panels
Reversible conveyor direction
