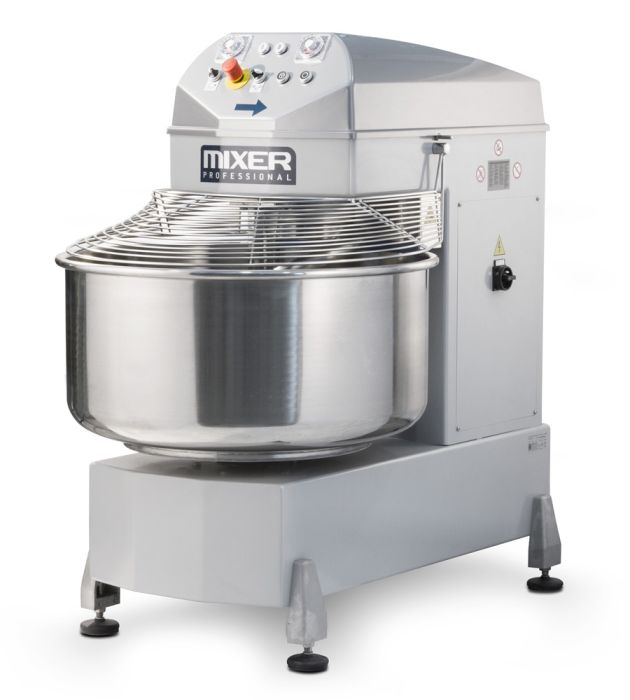

MIXER Spiral Mixer With 100L Fixed Bowl ASM 60 EVO

MODEL
ASM 60 EVO

Login to view price

Additional Information
More Information
ModelASM 60 EVO
BrandMixer
Size (LxWxH) mm635 x 1040 x 1360
Weight (KG)300
Capacity (â„“)100
Warranty One Year Manufacturing Defect
OriginItaly
Model ASM 60 EVO
Dough capacity Minimum 5 kg
Maximum 60 kg
Flour capacity Minimum 3 kg
Maximum 38 kg
Water capacity Minimum 2 litre
Maximum 22 litre
Bowl volume 100 litre
% water/flour minimum 50%
Spiral turns (50/60Hz) 1st speed 93 rpm
2nd speed 184 rpm
Bowl turns (50/60Hz) 1st speed 10.5 rpm
2nd speed 21 rpm
Motors power 1st speed 2.35 kW
2nd speed 3.25 kW
Current drawn 230V 12 A
400V 7.8 A
Spiral bar diameter 30 mm
Dimension (L x W x H) 635 x 1040 x 1360 mm
Net weight 300 kg
Spec Sheet (204.73 kB)

Features

  • Painted steel structure raised from the ground on 4 adjustable feet
  • Bowl, spiral, contrast column and guard made in stainless steel
  • Two independent 2-speed motors for spiral and bowl
  • Movement is trasmitted by pulleys and V-belts
  • Bowl thrust roller
  • Frontal control with two timers
  • Setting of work time with automatic shift from 1st to 2nd speed
  • Selector to reverse bowl
  • Impulse button to rotate bowl for product removal
  • Selector to activate second bowl speed
