MANITOWOC M Series 1000 Ice Cube Machine MD1000A-251B
MANITOWOC M Series 1000 Ice Cube Machine MD1000A-251B
Features
- SKU
- CFN-MD1000A-251B
Manitowoc · Model: MD1000A-251B
Pricing available on request
🚚 Delivery Optional
🔧 Installation Optional
🛡️ Warranty: One Year Manufacturing Defect
💬 WhatsApp support
Key Specifications
ModelMD1000A-251B
BrandManitowoc
Size (LxWxH) mm762 x 866 x 2019
Voltage220-240V / 50Hz / 1-phase
Warranty One Year Manufacturing Defect
OriginUnited States
Features
- Up to 445 kgs (981 lbs) daily ice production and only 30.00" (76.00 cm) wide
- R-410A CFC-free refrigerant
- Easy access to food zone with removal of two screws and lift-off door
- White plastics in the food zone help identify areas needing cleaning
- Water shield, distribution tube, pump, floats, and trough removable by hand
- Available CleanAir” pack controls the growth of bacteria and fungi that form slime and cause odors in the food zone

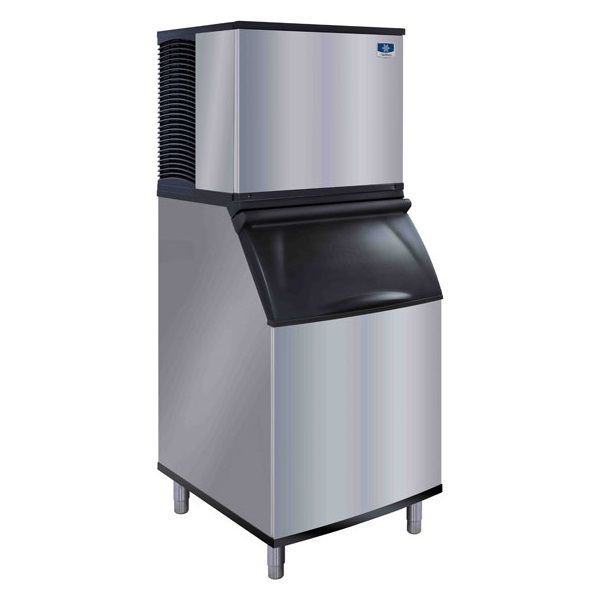

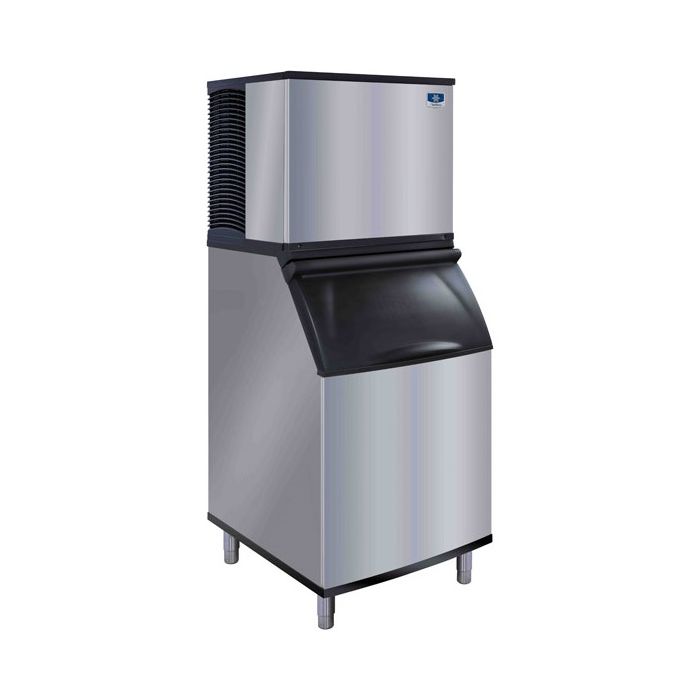

The photo shown above is M1000 Ice Machine on A570V Bin.
| Model | MD1000A-251B | |
| BTU per hour | 16,250 (average), 18,600 (peak) | |
| Compressor | 2HP (nominal rating) | |
| Refrigerant | R-410A | |
| Ambient temperature range | 1.7°C to 43.3°C | |
| Water temperature range | 1.7°C to 32.2°C | |
| Water pressure (water in) | Minimum | 20psi (137.9 kPA) |
| Maximum | 80psi (551.1 kPA) | |
| Ice production 24 hours | 21°C Air / 10°C Water | 437 kg |
| 32°C Air / 21°C Water | 374 kg | |
| Power usage (45.4kg @ 32°C Air / 21°C Water) | 5.76 kWh | |
| Water usage (45.4kg of ice) | 75.7 | |
| Voltage | 220-240V / 50Hz / 1-phase | |
| Total circuit ampacity | Air cooled | 13.8 A |
| Water cooled | 13.1 A | |
| Remote cooled | 14.1 A | |
| Maximum fuse size | 20A | |
| Cube size | Dice (22 x 22 x 22 mm) | |
| Dimension (L x W x H) | 762 x 866 x 2019 mm | |
