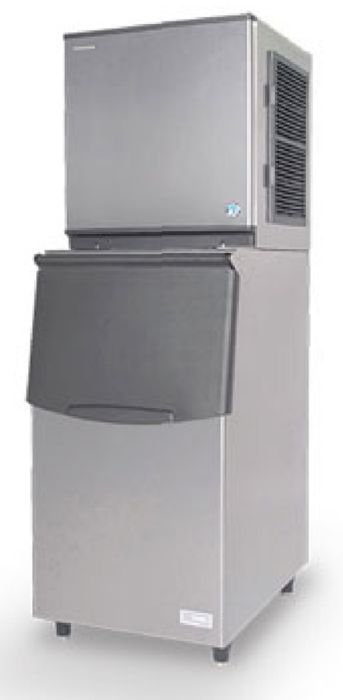

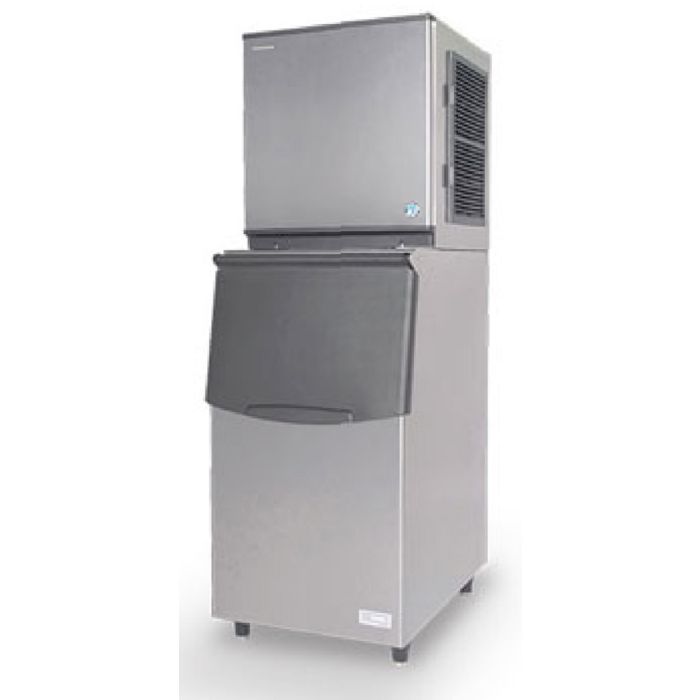

Model KMD-270AB Ice Dimensions (LxWxH) (mm) 37 x 30 x 13 mm External Dimensions (LxWxH) (mm) 560 x 625 x 610 mm Packed Dimensions (LxWxH) (mm) 668 x 727 x 793 mm Weight in kg (Nett / Gross) 57 / 73 Amperage / Starting Amperage 4.9A / 24A Electrical Consumption 1030 W Refrigerant Charge R404a Heat Rejection (AT 32°C / WT 21°C) 2435 W (2094 kcal/h) Ice Production Per 24H (15MM) (AT 10°C / WT 10°C) 265 kg (AT 21°C / WT 15°C) 248 kg (AT 32°C / WT 21°C) 221 kg Water Consumption Per 24H (AT 21°C / WT 15°C) 0.54 m3, 2.2L / 1kg Ice Ice Production (AT 21°C / WT 15°C)  Freeze Cycle Time 30.2 Min Per Cycle 5.7 kg / 624 Pcs Voltage Range 198V-254V Ambient Temperature 1°-40°C Water Supply 5°-35°C / 0.07-0.8 Mpa / 7.25-116 PSI AC Supply Voltage 1/220-240V / 50 Hz
