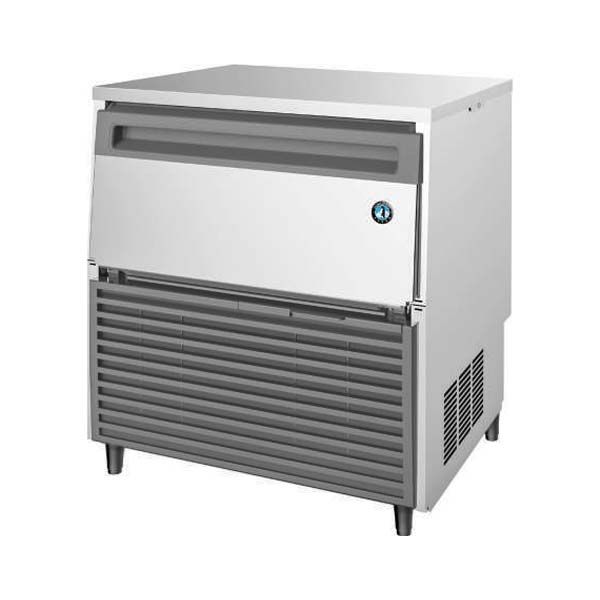

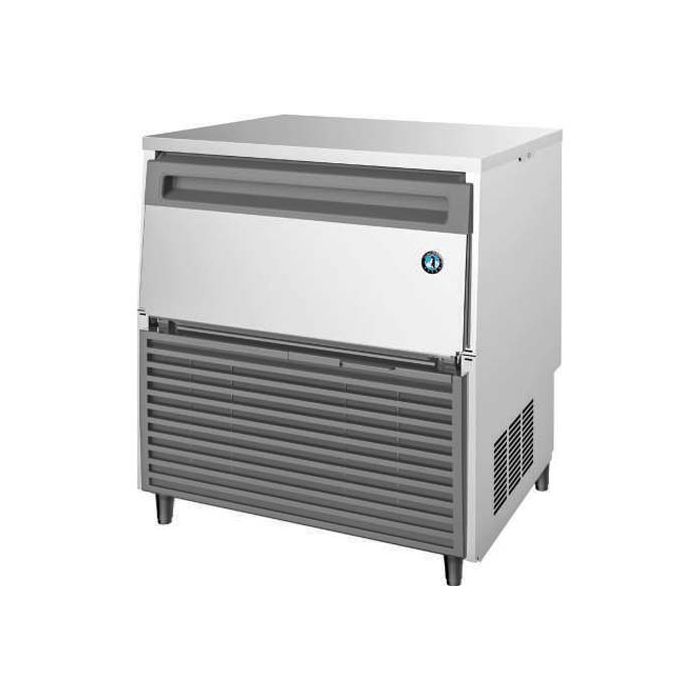

Name: HOSHIZAKI CUBE ICE MAKER IM-65A
Brand: Hoshizaki
SKU: HSZK-IM-65A
Price: 8930.00 MYR
Availability: InStock

Features

RM 10,000.00

RM 8,930.00

In Stock

Hoshizaki · Model: IM-65A

Pricing available on request

🚚 Delivery Optional 🔧 Installation Optional 🛡️ 1 to 3 years warranty (depending on brand) 💬 WhatsApp support

Key Specifications

ModelIM-65A

BrandHoshizaki

Size (LxWxH) mm660 x 570 x 800

Weight (KG)60

Voltage1/220-240V / 50Hz

Warranty Two Years Manufacturing Defects

OriginJapan

Features

Zero clearance rear design for easy installation
Round front door and easy access to ice
Pull out air filter design for easy cleaning
Front water valve access for easy servicability
Stainless steel exterior provides hygienic and high qualified finish
Clean edges and its transparency streaked by a marbling effect
When the cell walls block the freezing water's expansion from all sides, while reaching up to -30°C during the cubing process
As the temperatures go down, the water keeps expanding and marbles start to form

Model	IM-65A
Storage capacity	15 kg / 26 kg (bin sensor / max)
Voltage range	198-254V
AC supply voltage	1/220-240V / 50Hz
Electric comsumption (AT32°C/WT21°C)	390W
Amperage / starting amperage	2.7A / 13A
Refrigerant charge	R134a / 260g
Heat rejection (AT32°C/WT21°C)	910W 783kcal/h
Ice production per 24h (15mm)	(AT10°C/WT10°C)	70 kg
	(AT21°C/WT15°C)	62 kg
	(AT32°C/WT21°C)	49 kg
Ice production per cycle (AT32°C/WT21°C)	Approx. 0.94 kg / 42 pcs
	Freeze cycle time per cycle 29 minutes
Water consumption per 24h (AT32°C/WT21°C)	0.12m³ ≈ 2.4 litres / 1 kg ice
Ambient temperature	1 to 40°C
Water supply	5 to 35°C / 0.07-0.78Mpa / 7.25-116 PSI
Ice dimension (L x W x H)	28 x 28 x 32 mm (Standard size)
Dimension (L x W x H)	660 x 570 x 800 mm
Packing dimension (L x W x H)	760 x 680 x 970 mm
Net weight	60 kg
Gross weight	74 kg
