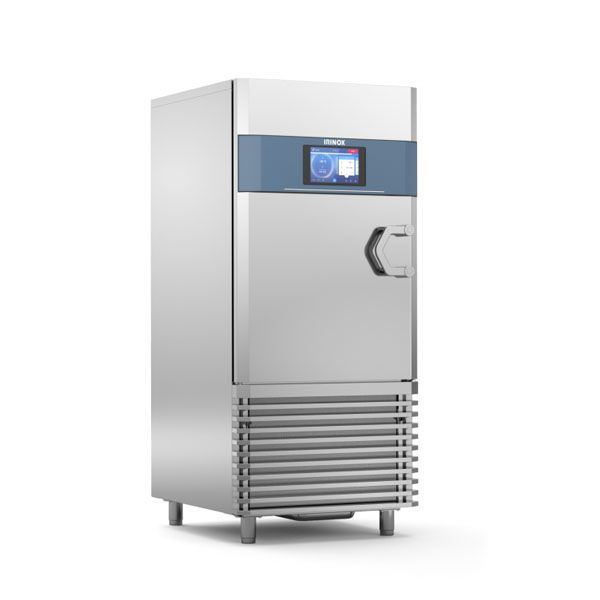

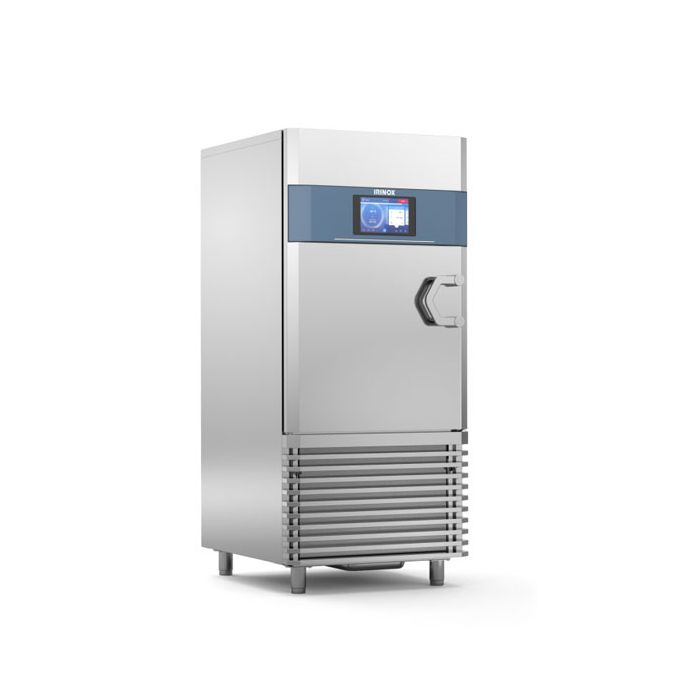

IRINOX Blast Chiller/Shock Freezer Multifresh® (Turbo) MF NEXT LL Essential 10"

MODEL

MF NEXT LL Essential 10"

Additional Information

More Information
Model	MF NEXT LL Essential 10"
Brand	Irinox
Size (LxWxH) mm	870 x 1145 x 1965
Weight (KG)	285 kg
Voltage	400V-3N+PE
Warranty	Two Year Manufacturing Defect
Origin	Italy

Model	MF NEXT LL Essential 10"
Capacity
Tray height 65 mm	GN2/1 > 13 pcs
Tray height 40 mm	GN2/1 > 18 pcs
Tray height 20 mm	GN2/1 > 27 pcs
Tray height 65 mm with double MultiRack	GN1/1 › 26 pcs
Tray height 40 mm with double MultiRack	GN1/1 › 36 pcs
Tray height 20 mm with double MultiRack	GN1/1 › 54 pcs
Voltage	400V-3N+PE
Frequency	50Hz
Power	8 kW
Yield
Cooling	from +90°C to +3°C, 95 kg of product
Freezing	from +90°C to -18°C, 95 kg of product
Refrigerant	R290
Dimension (L x W x H)	870 x 1145 x 1965 mm
Weight	285 kg

Features

Door opening on the left with hinges on the left
Patented concealed hinges
Full height door with double bevelled side edges
Door opening up to 160°
Magnetic and slow closing of the door
Equipped with 10-chamber gasket designed for high and low temperatures
Core probe with 3 detection points with quick screw connector, anti-corrosion, watertight IP67
Large magnetic flat surface (400x150 mm) to fix the core probe
Easy removal and cleaning of the condenser filter thanks to the tilting grill
Ergonomic and robust handle made of steel
AISI 304 stainless steel internal and external material
Built-in air condensation
R290 refrigerant gas
MultiRack®: the patented adjustable tray holder that doubles the number of trays for each model and improves air circulation inside the blast chiller
15 pairs of guides included
WIFI module included for the HACCP report download
