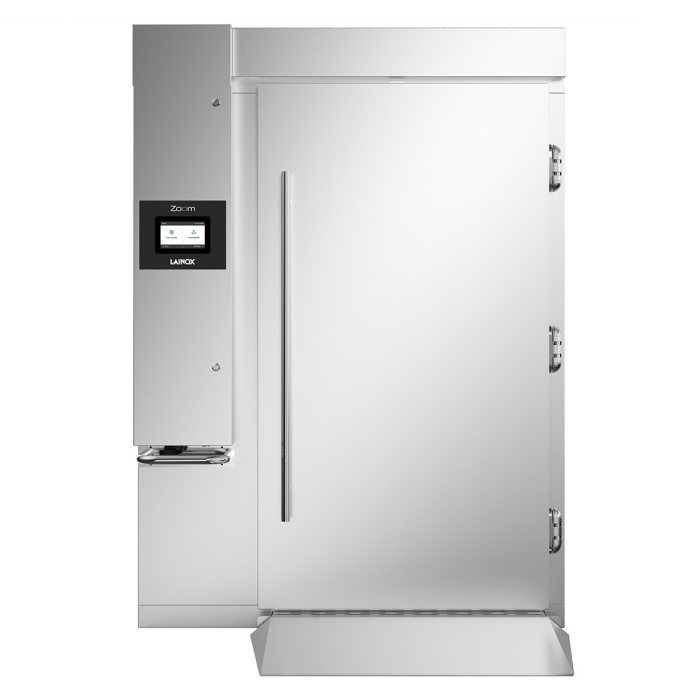

LAINOX Zoom Blast Chiller & Freezer Cell With Remote Air-Cooled Condensing Unit And 7 Touch Screen Display ZO401SP
MODEL
ZO401SP
Login to view price
Additional Information
| Model | ZO401SP |
|---|---|
| Brand | Lainox |
| Size (LxWxH) mm | 1300 x 2325 x 2200 |
| Weight (KG) | 878.6 |
| Voltage | 400V-3N+PE 50Hz |
| Warranty | One Year Manufacturing Defect |
| Origin | Italy |
| Model | ZO401SP |
| Capacity | 2 trolleys (20 x GN 1/1 or 15 x GN 1/1 or 15 x EN 600 x 400) |
| Chilling capacity | 240 kg |
| Freezing capacity | 160 kg |
| Temperature range | -18°C to 3°C |
| Internal setup | Bumpers |
| n° of doors | 2 n° |
| n° of compartments | 1 n° |
| Refrigerant | R452A |
| Absorbed electrical power | 1500 W |
| Cooling power | 12620 W |
| Power supply | 400V-3N+PE 50Hz |
| Nominal current | 6.86A |
| Noise level | - |
| Climate class | 5 |
| Yield per cycle (+65/+10°C) kg | 220 |
| Yield per cycle (+65/-18°C) kg | 120 |
| Floor height | 60 mm |
| Insulation thickness | 80 mm |
| Inner depth | 1840 mm |
| Door opening width | 740 mm |
| Net height door | 1820 mm |
| Dimension (L x W x H) | 1300 x 2325 x 2200 mm |
| Packed dimension (L x W x H) | 2400 x (2 x 1560) x 1540 mm |
| Net weight | 878.6 kg |
| Gross weight | 992.9 kg |
Features
- Remote condensing unit with high power, with protection cover
- Blast chilling
- Shock freezing
- Panel construction
- Stainless steel exterior (Scotch-Brite satin)
- Inner in stainless steel with rounded corners
- Inside bottom and floor die-formed leakproof
- Insulation in high density (42 kg/m³ approx.) expanded polyurethane, 80 mm thick, HCFC-free
- Thick stainless steel internal bumper to avoid damage caused by the trolley
- Copper-aluminum evaporator with cataphoresis anti-corrosion treatment
- High-ventilation evaporator to ensure the highest efficiency of the cooling system
- Anti-condensation resistance
- Hinged door with gasket and closing ramp system
- Vertical ergonomic door handle with magnetic closure
- External stainless steel protection to protect the control-board
- Heated core probe, with 4 measuring points
- Pre-cooling function
- PLUS functions
- Customised blast chilling and blast freezing cycles (300 cycles can be memorised)
- Automatic storing at end of blast chilling
- Indirect blowing electronic fans, efficient but gentle on food
- 7” high-definition IPS capacitive TOUCH display, easy to use
- Processes identifiable through photos
- USB connection for uploading and downloading data and recipes
- Circuit breaker for compressor protection
- Electrical connections positioned frontally in the panel equipped with safety locks
