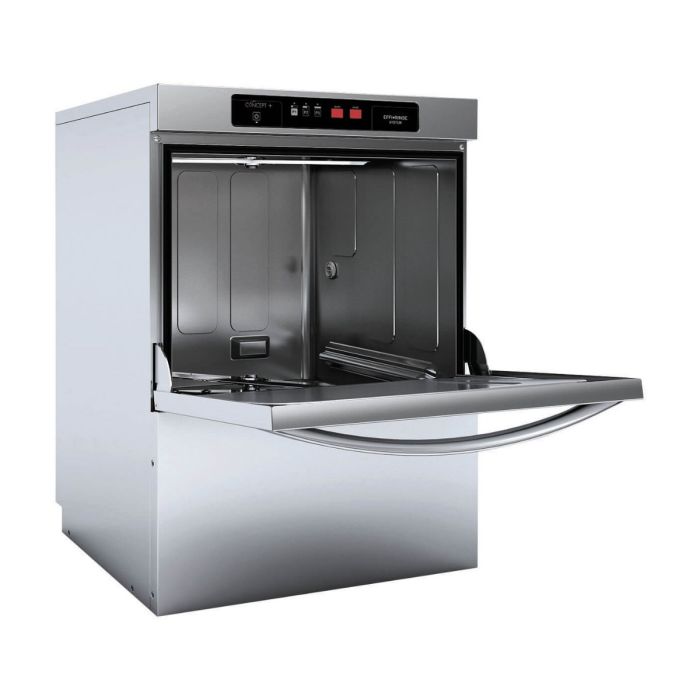

FAGOR Undercounter Dish Washer Digital Display CO502

MODEL

CO502

Additional Information

More Information
Model	CO502
Brand	Fagor
Size (LxWxH) mm	600 x 600 x 830
Weight (KG)	67
Warranty	One Year Manufacturing Defect
Origin	Spain

Model	CO502
Electricity Technical Specifications
Electric power	3.4 kW
Heating power	2.8 kW
Voltage	230V - 1N
Frequency	50 Hz
Amperage	14.7 A
Water Technical Specifications
Pressure	H2O: 200-400kPa(2-4bar)
Water max consumption	54 litre/h
Dimensions and Weight
Product dimension (L x W x H)	600 x 600 x 830 mm
Packed dimension (L x W x H)	660 x 745 x 1030 mm
Net weight	67 kg
Gross weight	82 kg

General characteristics

CO-502 model with electronic control, control pane and thermostatic filling system
Admits GN-1/1 trays
90”, 120” and 180” washing cycles
40 baskets/hour maximum theoretical production
20 litre tank with 2.8 kW heating element
7 litre boiler
2.4 litre water consumption per cycle
Rinse with thermostop system
Magnetic safety stop switch in door opening
Safety thermostat
Rounded tank to facilitate washing and drainage
Stainless steel armoured heating elements in the wash tank and rinse boiler
Double system of filter trays in the tank
IPX4 anti-humidity protection
