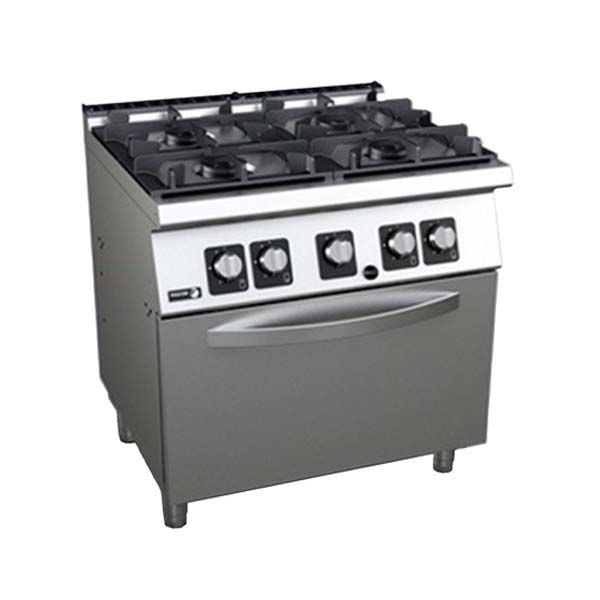

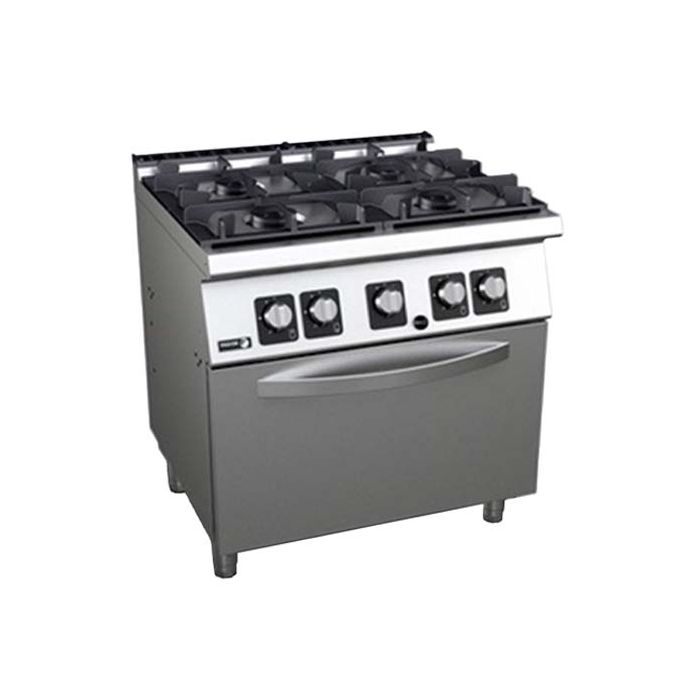

FAGOR 4 GAS OPEN BURNER WITH OVEN C-G741 H

Features

• Stamped surface tops manufactured in 1.5 mm thick AISI-304 stainless steel
• Laser-cut joints and automatic welding, hidden screws
• 397 x 580 mm double grates (397 x 290 mm for each burner) enabling the use of large pots and pans
• The reduced distance of 75 mm between the central bars makes it possible to use pots with a very small diameter (8 cm)
• Grates are made of RAAF enamelled cast iron (resistant to alkaline and acid products, fire and high temperatures)
• Double-crown burners and diffusers made of nickel-plated cast iron
• Burners of different strengths to adapt to containers and for use with different foods:
  - 5.25 kW (Ø 100 mm)
  - 8.0 kW (Ø 120 mm)
• Burners are easy to position
• Low-consumption pilot light and thermocouple located within the body of the burner for greater protection
• Flexible stainless-steel gas pipes, facilitating internal manipulations in order to make repairs easier
• Controls with a protective support base and system to prevent water infiltration
• High-temperature enamelled cast iron flue protector
• Access to components from the front
