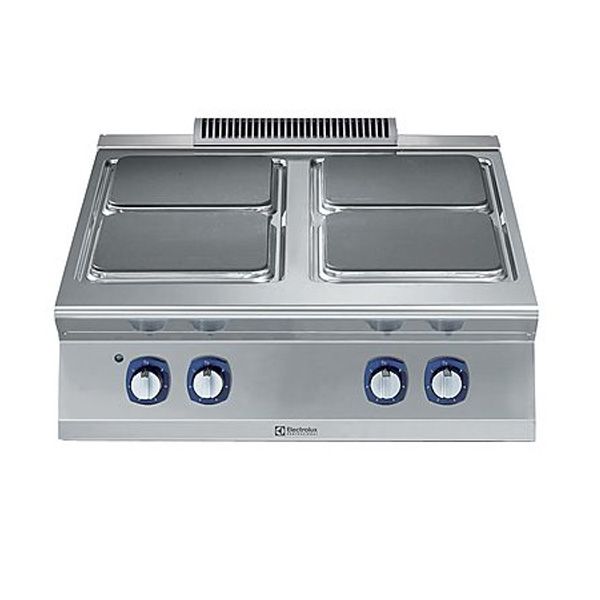

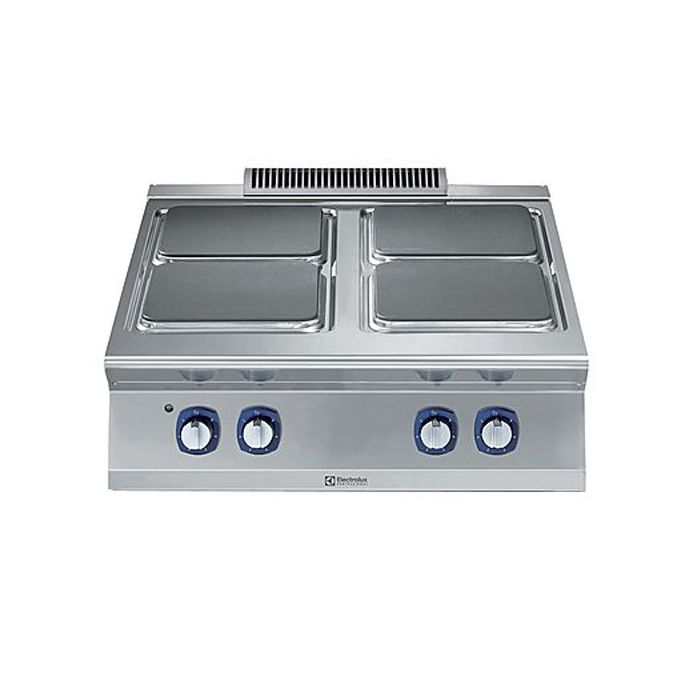

ELECTROLUX 4 HOT SQUARE PLATE ELECTRIC BOILING TOP 800MM ELE-391040

Name: ELECTROLUX 4 HOT SQUARE PLATE ELECTRIC BOILING TOP 800MM ELE-391040
Brand: Electrolux
SKU: ELE-391040
Price: 24640 MYR
Availability: InStock

Be the first to review this product

MODEL

ELE-391040

Additional Information

More Information
Model	ELE-391040
Brand	Electrolux
Size (LxWxH) mm	800 x 930 x 250
Weight (KG)	60
Voltage	380-400V / 3N ph
Warranty	One Year Manufacturing Defect
Origin	Sweden

Details

Model	ELE-391040
Voltage	380-400V / 3N ph
Frequency	50-60Hz
Total watts	16 kW
Plates power	Front : 4 - 4 kW
Plates power	Back : 4 - 4 kW
Plates dimensions	Front : 300 x 300, 300 x 300
Plates dimensions	Back : 300 x 300, 300 x 300
Dimension (L x W x H)	800 x 930 x 250 mm
Packing dimension (L x W x H)	1020 x 860 x 530 mm
Net weight	60 kg
Gross weight	72 kg

Attachment

Description

Features

IPX5 water protection
Special design of the control knob system guarantees against water infiltration
Unit to be mounted on open base cupboards, bridging supports or cantilever systems
Four 4kW cast-iron plates are hermtically sealed to the one-piece top
Hot plates with a power of 4kW for each plate
Top configuration allows installation on ambient base only (not possible to install on refrigerated nor freezer base)
Suitable for countertop installation
Right-angled side edges to allow flush fitting joints between units, eliminating gaps and possible dirt traps
AISI 304 stainless steel worktop, 2mm thick
All exterior panels in stainless steel with Scotch Brite finishing
Unit is 930 mm deep to give a larger working surface area
