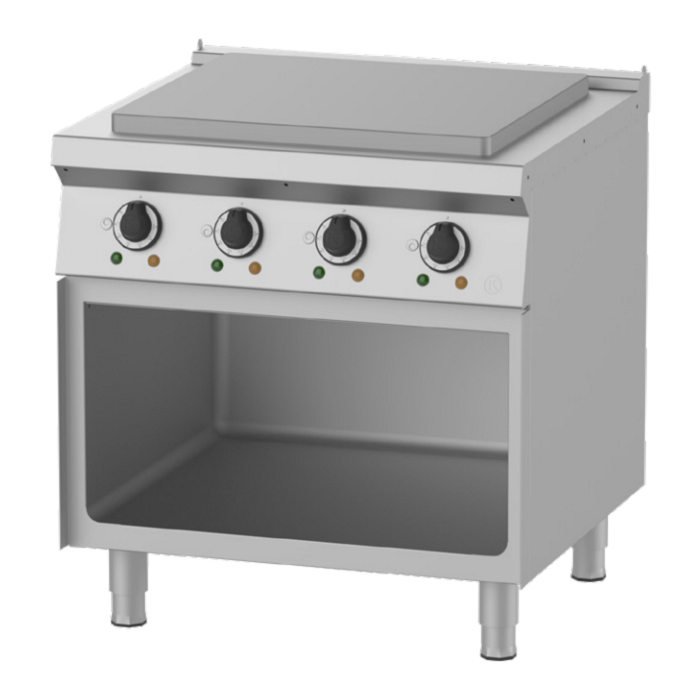

NAYATI Electric - Hot Top - 4 Heaters NEHT 8 - 75 ME

MODEL

NEHT 8 - 75 ME

Additional Information

More Information
Model	NEHT 8 - 75 ME
Brand	Nayati
Size (LxWxH) mm	800 x 750 x 870
Weight (KG)	104
Voltage	400V, 3NPE AC /50-60Hz
Warranty	One Year Manufacturing Defect
Origin	Indonesia

Model	NEHT 8 - 75 ME
Hot Top	18 mm of 16Mo5 Steel
Cooking zones (L x W)	620 x 500 mm
Heating zones	4
Control type	Modulating temperature control
Temperature (max)	420°C
Power	14.8 kW
Voltage	400V, 3NPE AC /50-60Hz
Recommended fuse	6A (slow)
Water connections	N/A
Drain connections	N/A
Direct heat emission	5.92 kW
Latent heat emission	2.52 kW
Steam emission	3.7 kg/h
Adjustable AISI leg	± 25 mm
Water protection level	IPX5
External dimensions (L x W x H)	800 x 750 x 870 mm
Packing dimensios (L x W x H)	830 x 780 x 990 mm
Net weight	104 kg
Gross weight	126 kg

Features

Powered with 4 x 3.7 kW cast iron heating elements
4 heating zones with individual temperature control
Removable flush griddle constructed of Molybdenum steel (16Mo5) thickness of 18 mm, designed for very high temperature

Construction

External construction entirely with AISI 304
Top panel with 1.5 mm thickness. Orbital surface finishing: resistant toward scratches
Front and side panel are constructed of 0.8 mm AISI 304 with satin surface finish
Nayati connection system between Meritus products on the front panels, cabinets, and splashbacks
Cabinet executed with H2 radius
Deep drawn front panel to minimize liquid penetration to the internal part
Gasket protection behind the knobs to prevent water to seeping in, prolonging main heating regulation parts
