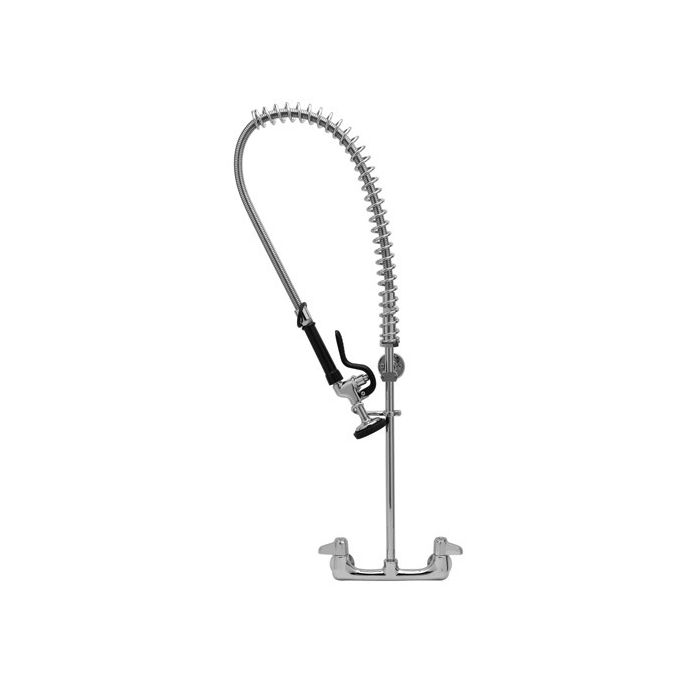

T&S 8" WALL MOUNTED PRE-RINSE UNIT EQUIP 5PR-8W00-H

Features
SKU
FBE-5PR-8W00-H

Customizable Options:

Email to a Friend

T&S · Model: 5PR-8W00-H

Pricing available on request

🚚 Delivery Optional 🔧 Installation Optional 💬 WhatsApp support
Key Specifications
Model5PR-8W00-H
BrandT&S
Weight (KG)4.85
Warranty Not Applicable
OriginUnited States

Features

  • 1/2" NPT female eccentric inlets with 2" flanges
  • 18" rigid riser
  • 44" flexible stainless steel hose w/ heat resistant black handle and hold down ring
  • 6" adjustable wall bracket
  • 8" wall mount polished chrome plated brass body
  • Adjustable centers 7 3/4" to 8 1/4"
  • High flow spray valve
  • In-line check valves
  • Lever handles w/ color coded screws
  • Quarter-turn ceramic cartridges
Model 5PR-8W00-H
Pressure  Max 125 psi (8.62 bar)
Min 20 psi (1.38 bar)
Nozzle flow 4.35 GPM (16.46 L/min)
Temperature  Max 140 F (60°C)
Min 40 F (4.44°C)
Packing dimension (L x W x H) Approx. 3.88 x 12.00 x 27.50 mm
Weight 4.85 kg
FILE Installation and Maintenance Instructions 718.62 kB Download ↓
