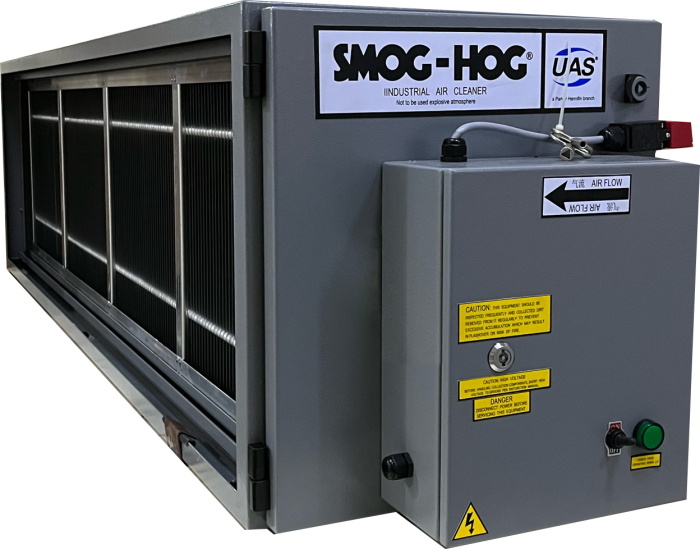

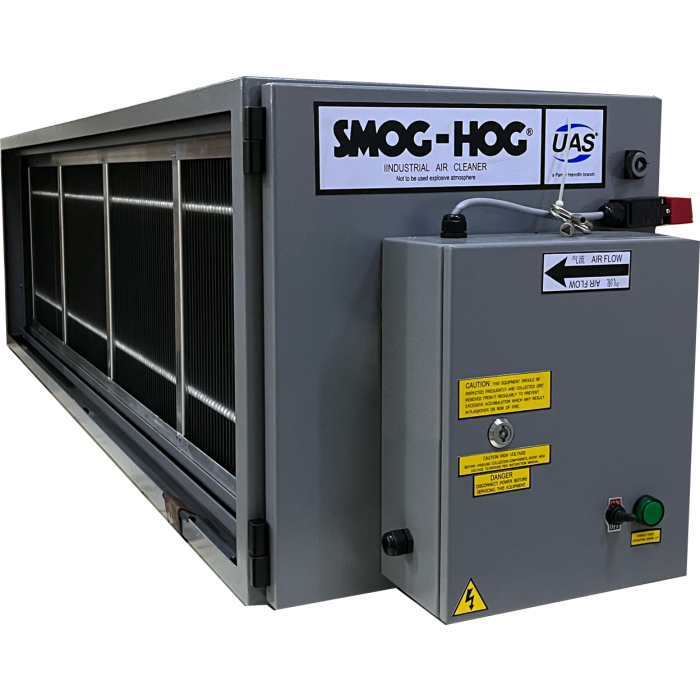

SMOG-HOG Kitchen Exhaust Filter / ESP / Air Cleaner SHPP14

MODEL
SHPP14

Login to view price

Additional Information
More Information
ModelSHPP14
BrandSMOG-HOG
Warranty One Year Manufacturing Defect
OriginUnited States

Features

  • Highest efficiency removal of the widest range of particle size
  • Easily cleaned and reusable ESP collection components eliminates filter replacement and disposal
  • Low energy consumption
  • Less frequent maintenance is required as collected liquid coalesces and drains off aluminium ESP collection components - always Maintains consistent airflow
  • Collection of coils and coolants for reuse
  • Highly effective collection of both oil-and water-based coolants
  • Flexible intake configurations for generalsā€™ area or source capture
  • 22 different mist collection models to accommodate application needs
Installation Guide (508.20 kB)

How Smog Hog Works

1. The electrostatic precipitator is usually installed on the inlet (suction) side before the fan. The contaminant-laden air passes through the Pre-filter where coarse particles are removed and optimally distributed in the housing.

2. The electrostatic field in the ionizer continuously positively charges the remaining fine particulate pollutants in fractions of a second.

3. The charged particles are then deposited on the Ground/Earthed after the collector, while the cleaned air discharges / exhausts out. The separating plates are designed in such a way that the contaminants run off easily, aiding self-cleaning of the electrostatic precipitator (optional in-place cleaning).
