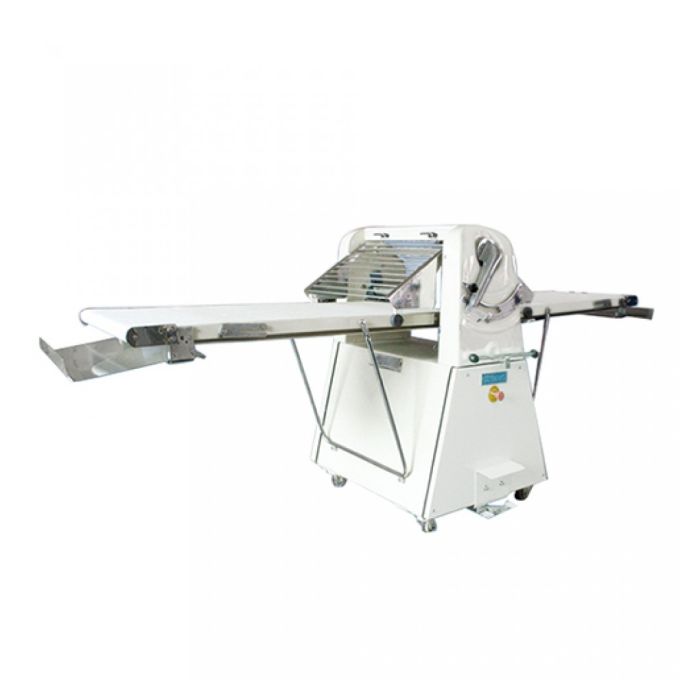

SINMAG Sheeter- Heavy Duty Series SM-520E
MODEL
SM-520E
Additional Information
| Model | SM-520E |
|---|---|
| Brand | Sinmag |
| Size (LxWxH) mm | 2680 x 945 x 1270 |
| Weight (KG) | 220 |
| Voltage | 380V-50Hz-3PH |
| Warranty | One Year Manufacturing Defect |
| Origin | China |
| Model | SM-520E | |
| Type | Floor model | |
| Frame cover | Mild steel | |
| Power | 0.75 kW | |
| Voltage | 380V-50Hz-3PH | |
| Working width | 500 mm | |
| Conveyor table length | 1000 mm | |
| Gap between rollers | 0.3 to 50 mm | |
| External dimension (L x W x H) | Machine tables are in working position | 2680 x 945 x 1270 mm |
| Machine tables are folded up | 1750 x 945 x 1750 mm | |
| Weight | 220 kg | |
Features
- PVC conveyor belts
- Belt speed 60 cm/sec
- Shifting speed by Thread Commutator and Chain Wheel wears well
- Tables can be raised after operation
- The safety grid can protect us from injury
- Remove scrapers without tools conveniently for cleaning
- Use manual lever or footboard switch conveniently for operation
- Conveyor table could be lifted up for space-saving when not in operation
- Mounted on castors with locking system, easily movable
- CE approval
