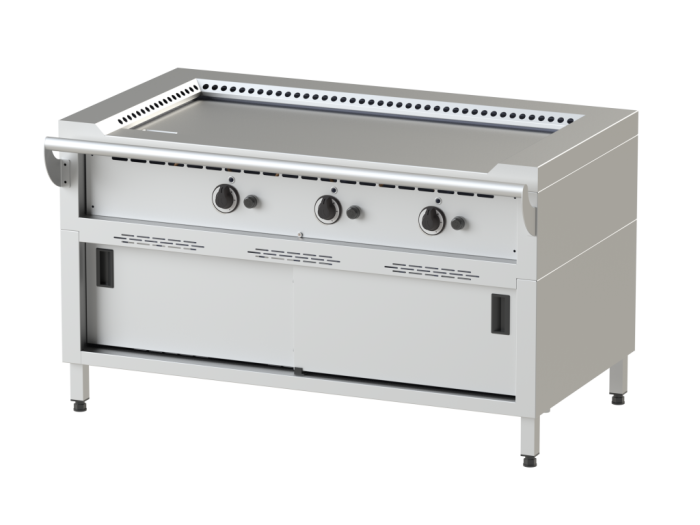

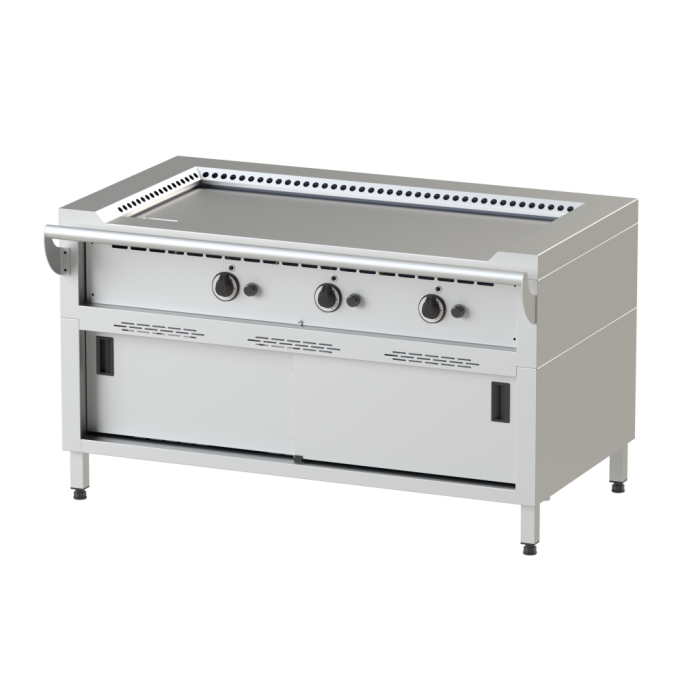

NAYATI Gas - Teppanyaki TP TP-JG 15/G

- SKU
- NYT-TP-JG 15/G
Nayati · Model: TP-JG 15/G
The Nayati TP-JG 15/G is a gas - teppanyaki TP for restaurants, cafés, hotels and food businesses. Request a quotation for pricing, delivery and installation, or see it at one of our six showrooms across Malaysia.
- Delivery & installation Nationwide, by our technicians
- Brand warranty One Year Manufacturing Defect
- See it in person 6 showrooms in Malaysia
- Kitchen planning With Business Doctor
Gas Teppanyaki Griddle with uniform heating and accurate temperature control for superior hibachi-style cooking. The removable top frame for the griddle and the large capacity grease container guarantees an excellent hygienic level.
Features
- High-performance atmospheric burners with a total power rate of 21kW
- Three individually controlled heating zones
- Piezo ignition
- Equipped with pilot burners, safety thermocouples, gas valves, gas knobs
- Griddle plate, made of 20mm polished S355 JR steel
- Rectangular drain with a large stainless steel container to collect grease/food debris
- Hand-/condiment rail which accepts various numbers of GN 1/9 containers
- Detachable, spacious base cabinet with two sliding doors
- CE certified unit
Construction
- Sturdy frame, made of stainless steel AISI430
- Stainless steel top panel (1.5 mm), AISI304 with orbital surface pattern
- Front, back, and side panels (1.0 mm) made of stainless steel AISI304 with hairline surface pattern
- Height adjustable stainless steel legs
- Types of installations: free standing
- Frame, top and panels, all made of high-grade stainless steel
| Model | TP-JG 15/G |
| Cooking zones (L x W) | 1200 x 550 mm |
| External dimension (L x W x H) | 1440 x 895 x 850 mm |
| Packaging dimension (L x W x H) | 1470 x 925 x 970 mm |
| Net weight | 238 kg |
| Gross weight | 296 kg |
| Gas Power Rating | |
| Heat input total | LPG/LNG 21kW |
| No. of burners | 3 |
| Control type | Modulating temperature control |
| Gas type options | LPG G30, G31 LNG G20, G25 |
| Connections | |
| Gas | DN 20 (3/4") |
| Water | N/A |
| Drain | N/A |
| Heat & Steam Emissions | |
| Direct heat emission | LPG/LNG 7.35kW |
| Latent heat emission | LPG/LNG 8.40kW |
| Steam emission | LPG/LNG 12.34kg/h |
