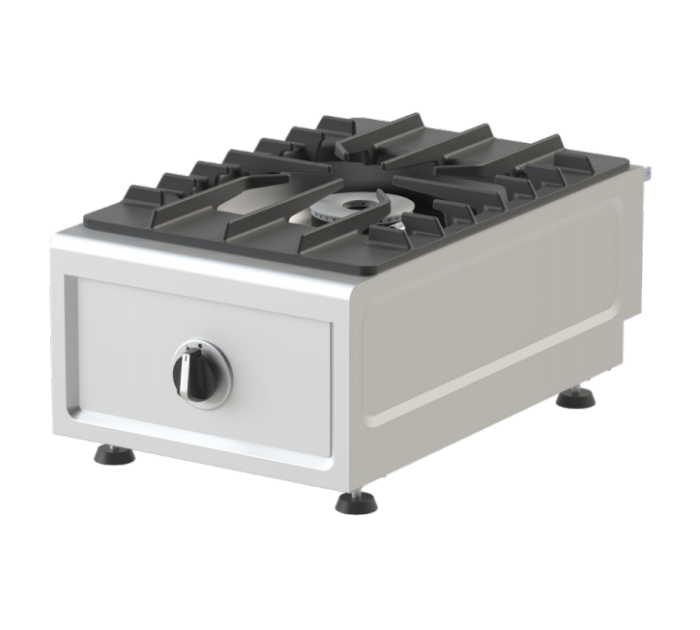

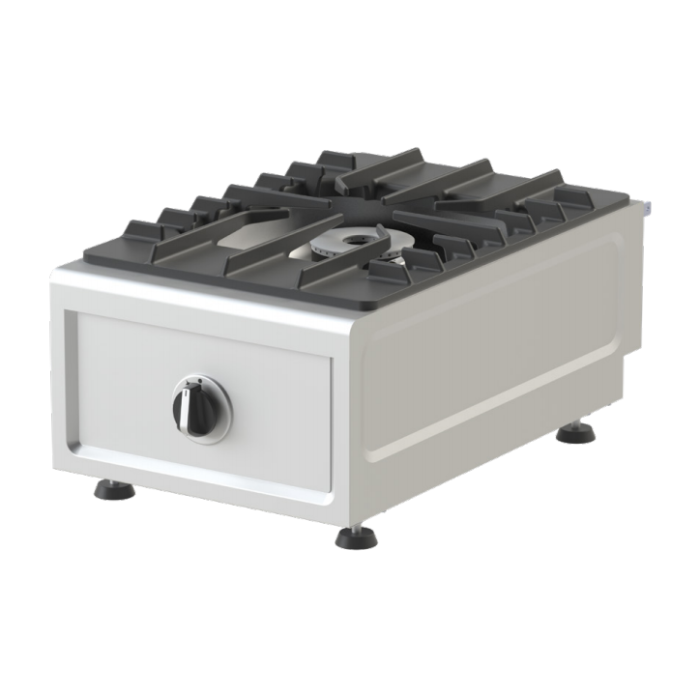

NAYATI Gas - Open Burner, 1 Burner NGOB 1 4-60 AM

MODEL
NGOB 1 4-60 AM
Additional Information
More Information
ModelNGOB 1 4-60 AM
BrandNayati
Size (LxWxH) mm380 x 600 x 260
Weight (KG)21
Warranty One Year Manufacturing Defect
OriginIndonesia
Model NGOB1 4-60 AM
Gas Power Rating
Heat input total LPG/LNG 7.5 kW
No. of burners 1
Control type High - low power control
Gas type options LPG G30, G31
LNG G20, G25
Gas connections DN 20 (3/4”)
Heat & Steam Emissions
Direct heat emission 1.75 kW
Latent heat emission 0.7 kW
Steam emission 1.03 kg/h
Dimension and Weight
Cooking zones (L x W) 370 x 540 mm
Product dimension (L x W x H) 380 x 600 x 260 mm
Packing dimension (L x W x H) 410 x 630 x 380 mm
Net weight 21 kg
Gross weight 25 kg
Spec Sheet (188.25 kB)

Table top gas single open burner broiler with 600 mm depth and single 7.5 kW open burner. Usable for boiling, steaming, frying, braising, simmering and steam frying.

Features

  • 1 galvanized coated cast iron open burner, 7.5 kW
  • Fully-welded basin for hygiene
  • Cast iron pot holder with long fin to support various size of pot or pan
  • Equipped with flame failure device

Construction

  • Made of AISI 304 with 1.2 mm top thickness
  • Top panel with Orbital scratch-preventing finish
  • Side panel with 1.2 mm deep-drawn surface
  • Front panel with 0.8 mm deep-drawn surface
  • Manual Iginition
  • Rubber leg with 40 mm height
  • Connector between Amicus product on the back

Included Accessories

  • G20 Conversion Kit
  • Amicus joining clip
  • Cast iron pot holder
