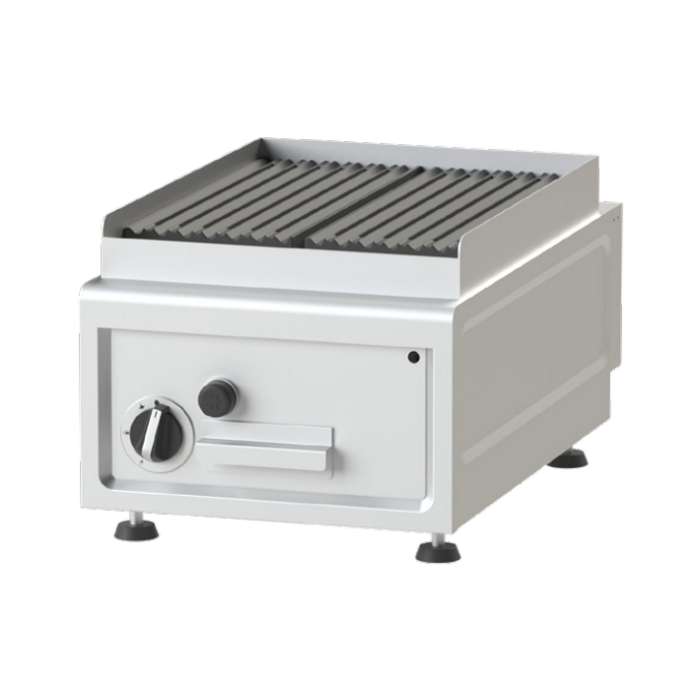

Name: NAYATI Gas - Char Broiler NGCB 4 - 60 AM
Brand: Nayati
SKU: NYT-NGCB 4 - 60 AM

Due to continuous technical development, the image shown may not represent the latest design of the unit.

Table top gas charcoal broiler with 600 mm depth and 7 kW tubular burner. Usable for charcoal grilling with cast iron, suitable for grilling meat and vegetables.

SKU: NYT-NGCB 4 - 60 AM

Nayati · Model: NGCB 4 - 60 AM

Pricing available on request

🚚 Delivery Optional 🔧 Installation Optional 🛡️ Warranty: One Year Manufacturing Defect 💬 WhatsApp support

Key Specifications

ModelNGCB 4 - 60 AM

BrandNayati

Size (LxWxH) mm380 x 600 x 260

Weight (KG)38

Warranty One Year Manufacturing Defect

OriginIndonesia

Table top gas charcoal broiler with 600 mm depth and 7 kW tubular burner. Usable for charcoal grilling with cast iron, suitable for grilling meat and vegetables.

Features

Powered with 7 kW chrome-plated steel tubular burner
Robut cast iron grill for excellent heat retention included
Removable grill tray compartment for ease of service
Piezzo ignition system with rubber cover
Equipped with flame failure device

Construction

Made of AISI 304 with 1.2 mm top thickness
Top panel with Orbital scratch-preventing finish
Side panel with 1.2 mm deep-drawn surface
Front panel with 0.8 mm deep-drawn surface
Top panel with Orbital scratch-preventing finish
Rubber leg with 40 mm height
Connector between Amicus product on the back

Included Accessories

6 kg of lava stone
G20 Conversion Kit
Amicus joining clip
Cast iron grill
Waste drawer

Model	NGCB 4 - 60 AM
Gas Power Rating
Heat input total	LPG/LNG 7 kW
No. of burners	1
Control type	High - low power control
Gas type options	LPG G30, G31 LNG G20, G25
Gas connections	DN 20 (3/4”)
Heat & Steam Emissions
Direct heat emission	2.45 kW
Latent heat emission	2.8 kW
Steam emission	4.12 kg/h
Dimension and Weight
Cooking zones (L x W)	360 x 425 mm
Product dimension (L x W x H)	380 x 600 x 260 mm
Packing dimension (L x W x H)	410 x 630 x 380 mm
Net weight	38 g
Gross weight	40 kg
