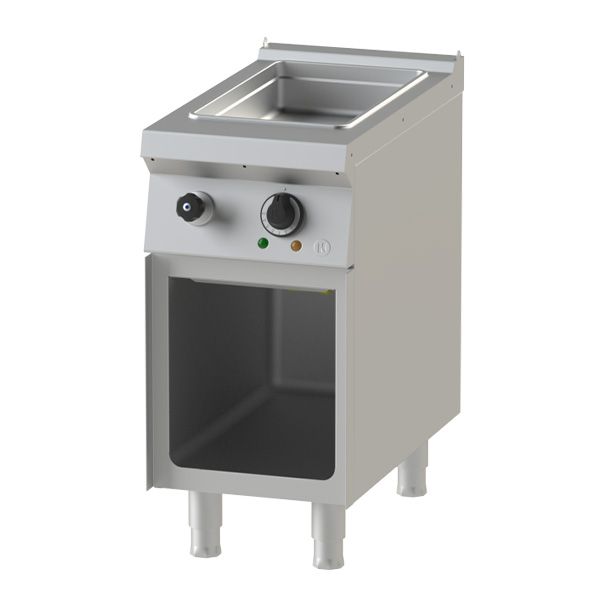

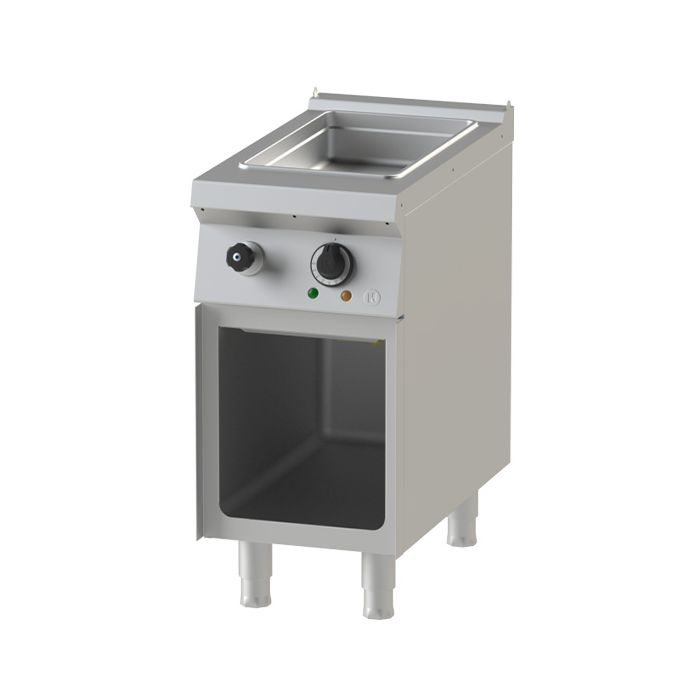

NAYATI Electric - Bain Marie NEBM 4-75 (ME)
MODEL
NEBM 4-75 (ME)
Additional Information
| Model | NEBM 4-75 (ME) |
|---|---|
| Brand | Nayati |
| Size (LxWxH) mm | 400 x 750 x 850/870 |
| Weight (KG) | 39 |
| Voltage | 230V, 1PNE AC |
| Warranty | One Year Manufacturing Defect |
| Origin | Indonesia |
| Model | NEBM 4-75 (ME) |
| Electrical Supply Data | |
| Voltage | 230V, 1PNE AC |
| Frequency | 50-60Hz |
| Total connected load | 2 kW |
| Recommended fuse | 13 A (slow) |
| Heat & Steam Emissions | |
| Direct heat emission | 0.25 kW |
| Latent heat emission | 0.40 kW |
| Steam emission | 0.59 kg/h |
| Cooking Surface | |
| Cooking zones | 1 x GN 1/1, 310 x 510 mm |
| Heating zones | 1 |
| Control type | Modulating temperature control |
| Connections | |
| Water | DN 15 (1/2”) |
| Drain | DN 20 (3/4”) |
| External dimension (L x W x H) | 400 x 750 x 850/870 mm |
| Packing dimension (L x W x H) | 430 x 780 x 990 mm |
| Net weight | 39 kg |
| Gross weight | 52 kg |
Features
- Powered with 2 kW rod heating element
- Tank is made of AISI 304 with height of 210 mm
- Usable water bath volume of 15 liters, equipped with overflow pipe
- Manual water filling system with knob integrated on the front panel
- Temperature control from 30°C to 90°C
- Thermal-cut off when overheated
Construction
- External construction entirely with AISI 304
- Top panel with 1.5 mm thickness, orbital surface finishing: resistant toward scratches
- Front & side panel is constructed of 0.8 mm AISI 304 with satin surface finish
- Tubular, height adjustable (-3…+50 mm) stainless steel legs
- Nayati connection system between Meritus products on the top panels and cabinets
- Cabinet executed with H2 radius
- Deep drawn front panel to minimize liquid penetration to the internal part
- Gasket protection behind the knobs to prevent water to seeping in, prolonging main heating regulation parts
- IPX5 water protection level
Included Accessories
- Joining clip ME1
