Additional Information

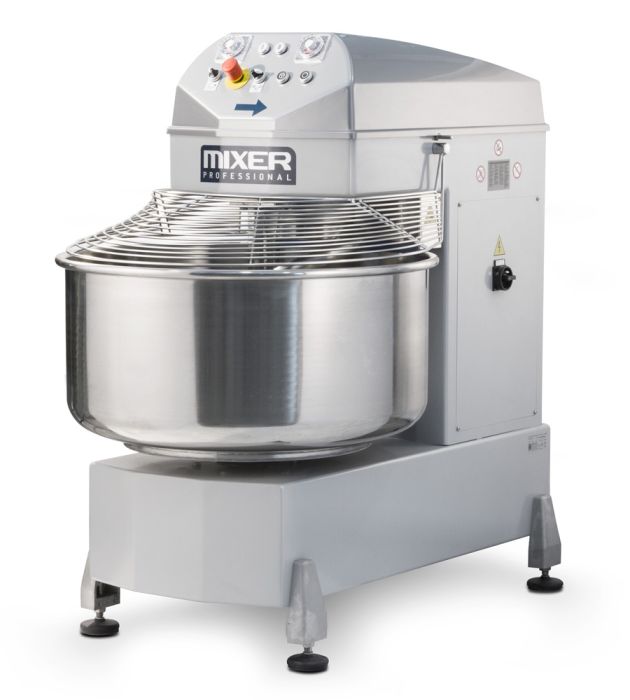

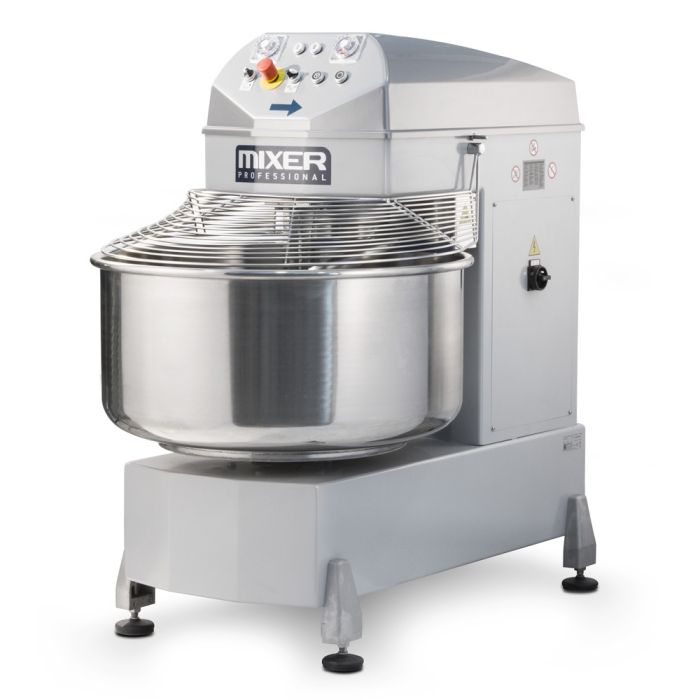

| Model | ASM 80 EVO |
|---|---|
| Brand | Mixer |
| Size (LxWxH) mm | 745 x 1190 x 1415 |
| Weight (KG) | 390 |
| Capacity (â„“) | 135 |
| Warranty | One Year Manufacturing Defect |
| Origin | Italy |
| Model | ASM 80 EVO | |
| Dough capacity | Minimum | 8 kg |
| Maximum | 80 kg | |
| Flour capacity | Minimum | 5 kg |
| Maximum | 50 kg | |
| Water capacity | Minimum | 3 litre |
| Maximum | 30 litre | |
| Bowl volume | 135 litre | |
| % water/flour minimum | 50% | |
| Spiral turns (50/60Hz) | 1st speed | 98 rpm |
| 2nd speed | 194 rpm | |
| Bowl turns (50/60Hz) | 1st speed | 10 rpm |
| 2nd speed | 20 rpm | |
| Motors power | 1st speed | 2.9 kW |
| 2nd speed | 5.3 kW | |
| Current drawn | 230V | 20.5 A |
| 400V | 12 A | |
| Spiral bar diameter | 35 mm | |
| Dimension (L x W x H) | 745 x 1190 x 1415 mm | |
| Net weight | 390 kg | |
Features
- Painted steel structure raised from the ground on 4 adjustable feet
- Bowl, spiral, contrast column and guard made in stainless steel
- Two independent 2-speed motors for spiral and bowl
- Movement is trasmitted by pulleys and V-belts
- Bowl thrust roller
- Frontal control with two timers
- Setting of work time with automatic shift from 1st to 2nd speed
- Selector to reverse bowl
- Impulse button to rotate bowl for product removal
- Selector to activate second bowl speed
