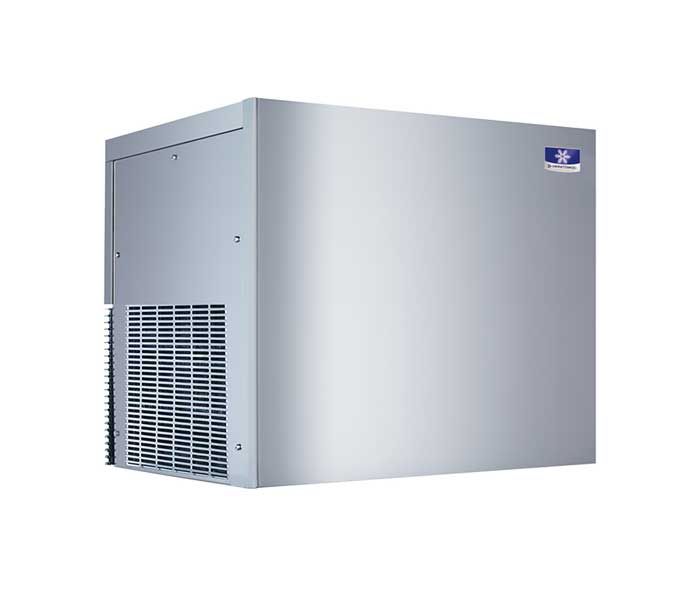

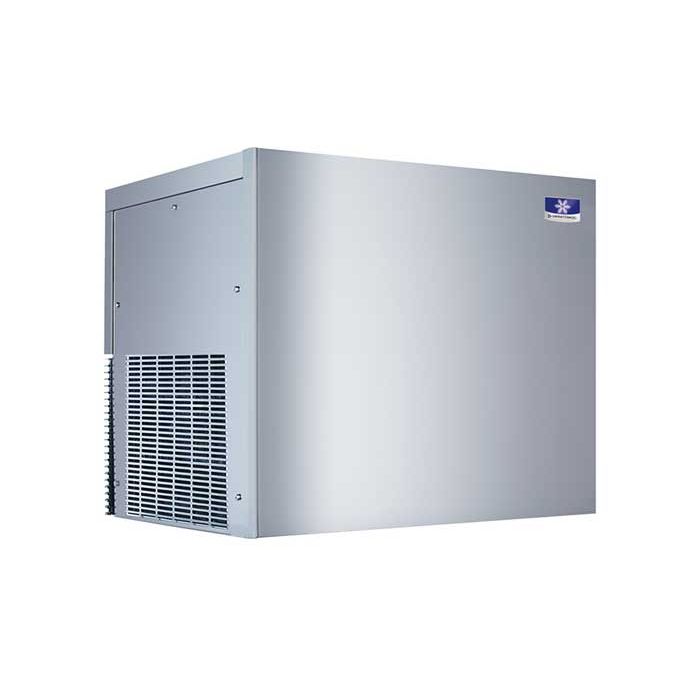

Name: MANITOWOC Modular Flaker IMH-A MOD22 RFK0320AZ-251
Brand: Manitowoc
SKU: CFN-RFK0320AZ-251

Flake ice is perfect for food display, salad bars, cold therapy/healthcare, and hand scooping into drinks. Manitowoc flake ice machines offer quick cooling, moldable flakes.

SKU: CFN-RFK0320AZ-251

RM 27,630.00

RM 26,630.00

In Stock

Manitowoc · Model: RFK0320AZ-251

Pricing available on request

🚚 Delivery Optional 🔧 Installation Optional 🛡️ 1 to 3 years warranty (depending on brand) 💬 WhatsApp support

Key Specifications

ModelRFK0320AZ-251

BrandManitowoc

Size (LxWxH) mm559 x 599 x 660

Voltage230V / 50Hz / 1ph

Warranty Three Years Manufacturing Defect

OriginUnited States

Flake ice is perfect for food display, salad bars, cold therapy/healthcare, and hand scooping into drinks. Manitowoc flake ice machines offer quick cooling, moldable flakes.

Features

Small, soft pieces of ice with a 73% ice to water ratio form around objects without bruising and hold in place without tipping or spilling
Easy access door slides up and out of the way
Up to 370 lbs. (168 kgs) daily flake ice production
Heavy duty stainless steel cabinet resists corrosion
High load capacity bearings for enhanced reliability

Model		RFK0320AZ-251
Ice type		Flake
Production	168 kg	Air: 21°C Water: 10°C
	130 kg	Air: 32°C Water: 21°C
Condenser unit		Air Cooled
Electrical		230V / 50Hz / 1ph
Cord		6' lead wire with no plug
Max fuse/breaker		20 amp
Amps		12.8
Compressor		1/2 HP
Refrigerant		R-404A
BTUs/hr		5,000 (average)
Dimension (L x W x H)		559 x 599 x 660 mm
Shipping weight		79 kg
Operating Limits
Minimum installation clearance		Sides: 5cm Back: 20cm
Ambient temperature range		10°C ~ 43°C
Water temperature range		3°C ~ 32°C
Water pressure ice maker water in	Minimum	14 psi (96.5 kPA)
	Maximum	80 psi (551.1 kPA)
