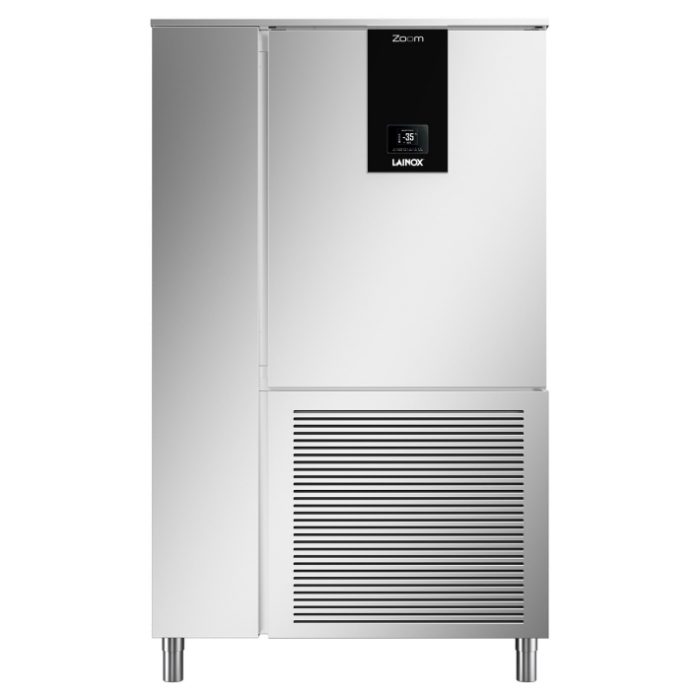

LAINOX Zoom Series Blast Chiller & Freezer With Graphic Control Display ZO122SA

MODEL
ZO122SA

Login to view price

Additional Information
More Information
ModelZO122SA
BrandLainox
Size (LxWxH) mm1100 x 1080 x 1860
Weight (KG)255
Voltage400V-3N+PE 50Hz
Warranty One Year Manufacturing Defect
OriginItaly
Model ZO122SA
Capacity 11 x GN 2/1 - 22 x GN 1/1 - 22 x 600 x 400
Chilling capacity 75 kg
Freezing capacity 50 kg
Temperature range -18°C to 3°C
n° of doors 1 n°
n° of compartments 1 n°
Internal setup Tray holder with double step guides
Number of load positions 11 n°
Pitch 75 mm
Refrigerant R452A
Absorbed electrical power 3740 W
Cooling power 2724 W
Power supply 400V-3N+PE 50Hz
Nominal current 7.33A
Noise level <70 dB(A)
Quantity charge gas 2300 g
Climate class 5
Yield per cycle (+65/+10°C) kg 70
Yield per cycle (+65/-18°C) kg 45
Energy cosumption for freezing function 0.07 kWh/kg
Energy cosumption for blast chilling function 0.22 kWh/kg
Insulation thickness 60 mm
Inner depth 930 mm
Door opening width 670 mm
Net height door 880 mm
Dimension (L x W x H) 1100 x 1080 x 1860 mm
Packed dimension (L x W x H) 1200 x 1180 x 2010 mm
Net weight 255 kg
Gross weight 295 kg
Spec Sheet (342.10 kB)

Features

  • Condensing unit on board with air cooling
  • Blast chilling
  • Shock freezing
  • External sides and top in AISI 304 18/10 stainless steel th. 0,8mm (Scotch-Brite satin finish)
  • Top in stainless steel th. 1 mm (Scotch-Brite satin)
  • Inner in stainless steel with rounded corners
  • Cavity with central drain for discharge of washing water
  • Heating element in the door frame
  • Ergonomic full-height door handle
  • Heated core probe
  • Pre-cooling function
  • Automatic storing at end of blast chilling
  • Removable stainless steel guides, can be positioned by interlocking (GN - EN)
  • Capacitive TOUCH control with 2,8' high definition display placed on the door
  • Indirect blowing electronic fans, efficient but gentle on food
  • Copper-aluminum evaporator with cataphoresis anti-corrosion treatment
  • High-ventilation evaporator to ensure the highest efficiency of the cooling system
  • High performance copper-aluminum condenser
  • Class T (ambient temperature +43°C)
