In stock

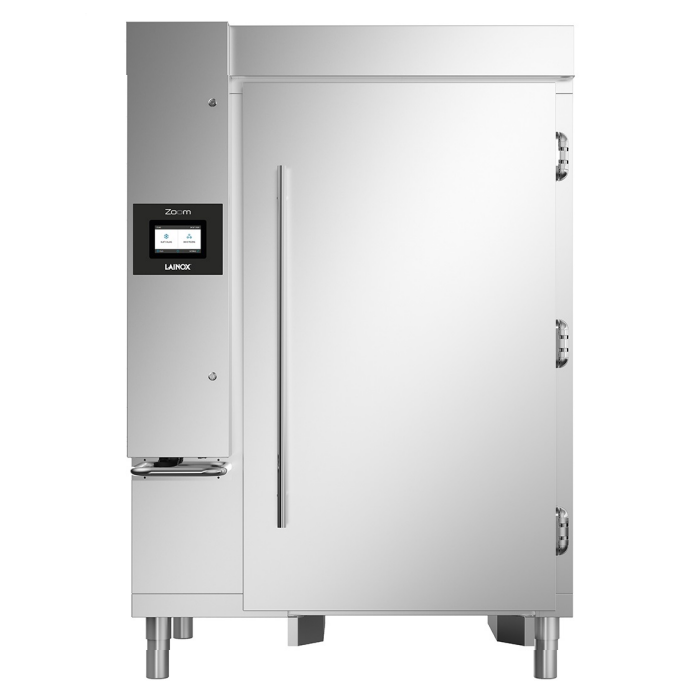

LAINOX Zoom Blast Chiller & Freezer Cell With Remote Air-Cooled Condensing Unit ZO202SF

MODEL
ZO202SF

Login to view price

Additional Information
More Information
ModelZO202SF
BrandLainox
Size (LxWxH) mm1500 x 1475 x 2203
Weight (KG)502.37
Warranty One Year Manufacturing Defect
OriginItaly
Model ZO202SF
Capacity 1 trolley (20 x GN 2/1 - 40 x GN 1/1 or 15 x GN 2/1 - 30 x GN 1/1 or 15 x EN 600 x 400)
Chilling capacity 130 kg
Freezing capacity 90 kg
Temperature range -18°C to 3°C
Internal setup Bumpers
n° of doors 1 n°
n° of compartments 1 n°
Refrigerant R452A
Absorbed electrical power 825 W
Cooling power 9030 W
Power supply 400V-3N+PE 50Hz
Nominal current 3.78A
Noise level -
Climate class 5
Yield per cycle (+65/+10°C) kg 120
Yield per cycle (+65/-18°C) kg 75
Floor height 60 mm
Insulation thickness 80 mm
Inner depth 1140 mm
Door opening width 900 mm
Net height door 1720 mm
Dimension (L x W x H) 1500 x 1475 x 2203 mm
Packed dimension (L x W x H) 2400 x 1760 x 1740 mm
Net weight 502.37 kg
Gross weight 629.37 kg
Spec Sheet (399.87 kB)

Features

  • Remote condensing unit with high power, with protection cover
  • Blast chilling
  • Shock freezing
  • Panel construction
  • Stainless steel exterior (Scotch-Brite satin)
  • Inner in stainless steel with rounded corners
  • Inside bottom and floor die-formed leakproof
  • Insulation in high density (42 kg/m³ approx.) expanded polyurethane, 80 mm thick, HCFC-free
  • Thick stainless steel internal bumper to avoid damage caused by the trolley
  • Copper-aluminum evaporator with cataphoresis anti-corrosion treatment
  • High-ventilation evaporator to ensure the highest efficiency of the cooling system
  • Anti-condensation resistance
  • Door with hinges with closing ramp
  • Self-closing door with block in open position at 100°
  • Stainless steel feet Ø 3” with adjustable height 220-270 mm
  • Vertical ergonomic door handle with magnetic closure
  • External stainless steel protection to protect the control-board
  • Heated core probe, with 4 measuring points
  • Pre-cooling function
  • PLUS functions
  • Customised blast chilling and blast freezing cycles (300 cycles can be memorised)
  • Automatic storing at end of blast chilling Indirect blowing electronic fans, efficient but gentle on food
  • 7” high-definition IPS capacitive TOUCH display, easy to use
  • Processes identifiable through photos
  • USB connection for uploading and downloading data and recipes
  • Circuit breaker for compressor protection
  • Electrical connections positioned frontally in the panel equipped with safety locks
  • Suitable to accommodate LAINOX trolleys only
