Model

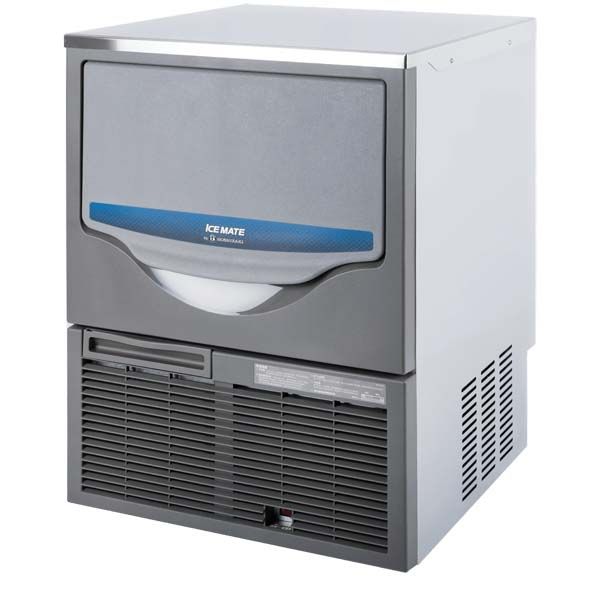

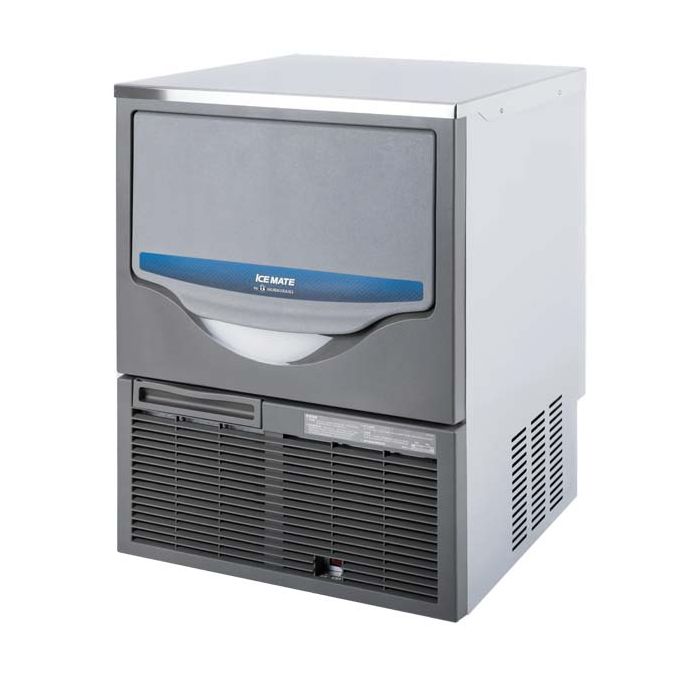

SRM-125UB
Voltage range
198 - 254 V
Ambient temperature
5 - 38ºC
Water supply
5 - 32ºC
Water supply pressure
0.07 - 0.55 Mpa (0.7 - 5.5 bar)
Supply voltage
1/220 - 240V / 50Hz
Amperage / Starting amperage
5.05A / 20.4A
Electrical consumption
(AT32ºC / WT21ºC) 590 W
Refrigerant charge
R404A
Ice storage capacity
Maximum 24kg
Ice production per 24H
(AT10°C / WT10°C) Approx. 125 kg(AT21°C / WT15°C) Approx. 106 kg(AT32°C / WT21ºC) Approx. 81 kg
Water consumption per 24H
(AT32ºC/WT21ºC) 0.17m3 (2.1L / kg Ice)
Ice production freeze cycle time
(AT21ºC/WT15ºC) 15 min
Ice production per cycle
(AT21ºC/WT15ºC) Approx. 1.17kg / 126 pcs
Ice Dimensions (W x D x H)
22 x 22 x 22 mm
Outside Dimensions (W x D x H)
660 x 670 x 850 mm
Package Dimensions (W x D x H)
Carton: 780 x 850 x 1050 mm
Net weight
58 kg
Gross weight
75 kg
