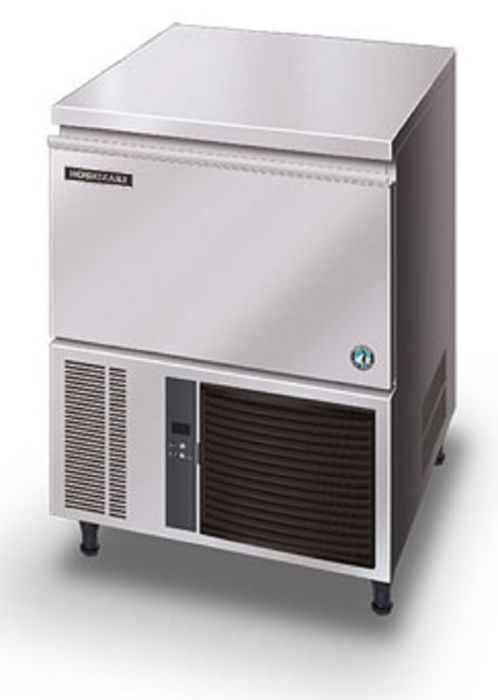

HOSHIZAKI Cube Ice Maker IM-45CNE

MODEL
IM-45CNE

Login to view price

Additional Information
More Information
ModelIM-45CNE
BrandHoshizaki
Energy TypeElectric
Size (LxWxH) mm740 x 620 x 890 mm
Warranty Two Years Manufacturing Defect
OriginUnited Kingdom
Model IM-45CNE
Dimensions (LxWxH) (mm)
Body : 633 x 506 x 690 mm / Leg Height : 90-125 mm
Packed Dimensions (LxWxH) (mm) 740 x 620 x 890 mm
Weight in kg (Nett / Gross) 48 / 55
Amperage / Starting Amperage 2.4A / 13A
Electrical Consumption 330 W
Refrigerant Charge R134a
Heat Rejection (AT 32°C / WT 21°C) 640 W (550 kcal/h)
Storage Capacity 15 kg
Voltage Range  198V-254V
Ambient Temperature 1°-40°C
AC Supply Voltage  1/220-240V / 50Hz
Water Supply 5°-35°C / 0.07-0.8 Mpa / 7.25-116 PSI





Model IM-45CNE
Ice Production Per 24H (15MM)
(AT 10°C / WT 10°C) 44 KG
(AT 21°C / WT 15°C ) 40 KG
(AT 32°C / WT 21°C) 32 KG
Water Consumption
Per 24H (AT 21°C / WT 15°C)
0.03 m3, 2.5L / 1kg Ice
Ice Production
(AT 21°C / WT 15°C)
FREEZE CYCLE TIME 28 MIN
PER CYCLE 0.67 KG / 30 PCS
