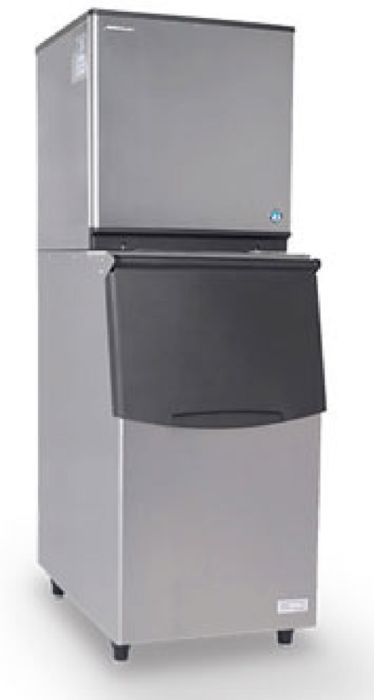

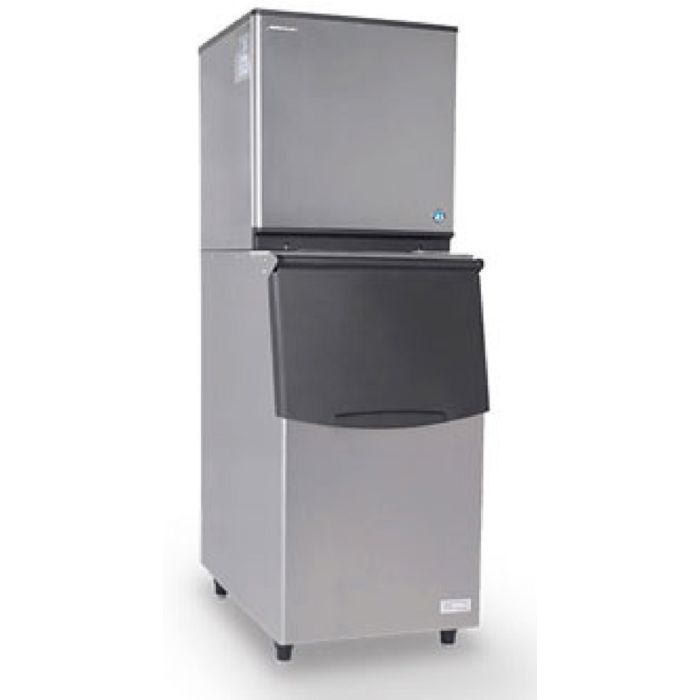

Model KMD-201AB Ice Dimensions (LxWxH) (mm) 37 x 30 x 13 mm External Dimensions (LxWxH) (mm) 560 x 625 x 610 mm Packed Dimensions (LxWxH) (mm) 668 x 727 x 793 mm Weight in kg (Nett / Gross) 57 / 73 Amperage / Starting Amperage 3.0A / 25A Electrical Consumption 700 w Refrigerant Charge R134a Heat Rejection (AT 32°C / WT 21°C) 1410 W (1220 kcal/h) Ice Production Per 24H (15MM) (AT 10°C / WT 10°C) 205 kg (AT 21°C / WT 15°C) 182 kg (AT 32°C / WT 21°C) 157 kg Water Consumption Per 24H (AT 21°C / WT 15°C) 0.48 m3 , 2.6L / 1 kg Ice  Ice Production (AT 21°C / WT 15°C) Freeze Cycle Time 27.7 Min Per Cycle 3.8 kg / 416 PCS Storage Capacity  55 kg Voltage Range 198V-254V Ambient Temperature 1°-40°C Water Supply 5°-35°C / 0.07-0.8 Mpa / 7.25-116 PSI  AC Supply Voltage 1/220-240V / 50 Hz

13330
