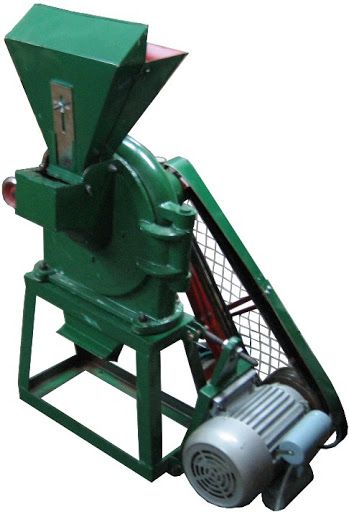

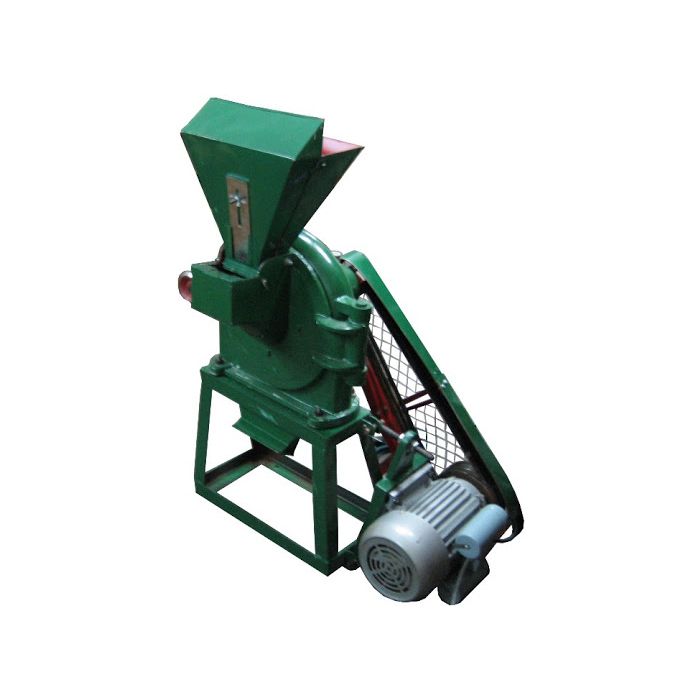

Golden Bull China Disk Mill 5800rpm C/W 3HP Motor FFC-23 c/w YC 3hp2p

MODEL
FFC-23 c/w YC 3hp2p
Additional Information
More Information
ModelFFC-23 c/w YC 3hp2p
BrandGolden Bull
Size (LxWxH) mm800 x 500 x 1000
Weight (KG)65
Warranty 3 Months Manufacturing Defect
OriginChina
Model FFC-23 c/w YC 3hp2p
Rotational speed of main shaft 5800 rpm
Outer dia. of the rotor (including flat tooth) 230mm
No. of oblate gears of the rotator 3 pcs
No. of knuckle gears of the rotator 3 pcs
Circles of square gears of the gear wheel 2 circles
Pitch between the oblate gear & screen 9mm
Sieve size (screen strap) 0.6mm, 1.2mm, 3.5mm
Motor power 3HP 240V
Motor speed 3000 rpm
Dimension (L x W x H) 800 x 500 x 1000mm
Weight (excluding motor) 65 kg

Output (kg/hr) of FFC-23:

Articles

Sieve size of screen

Output

Corn

1.2mm

190 kg/hr

Soya beans

0.6mm

80 kg/hr

Dried sweet-potato slices

-

Da Huang

-
