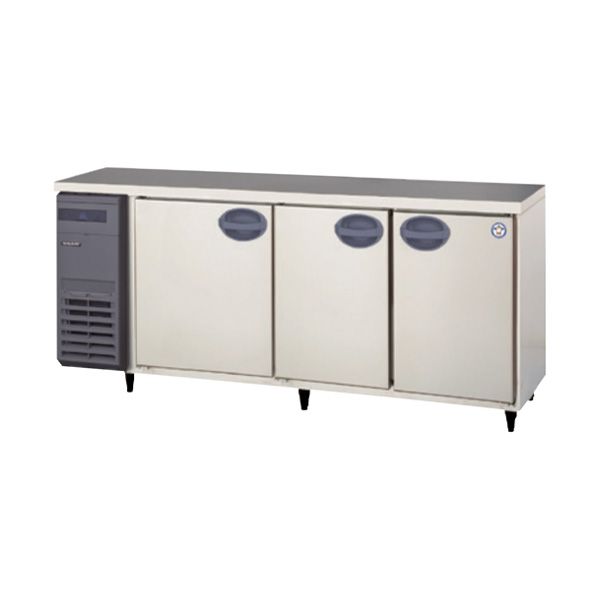

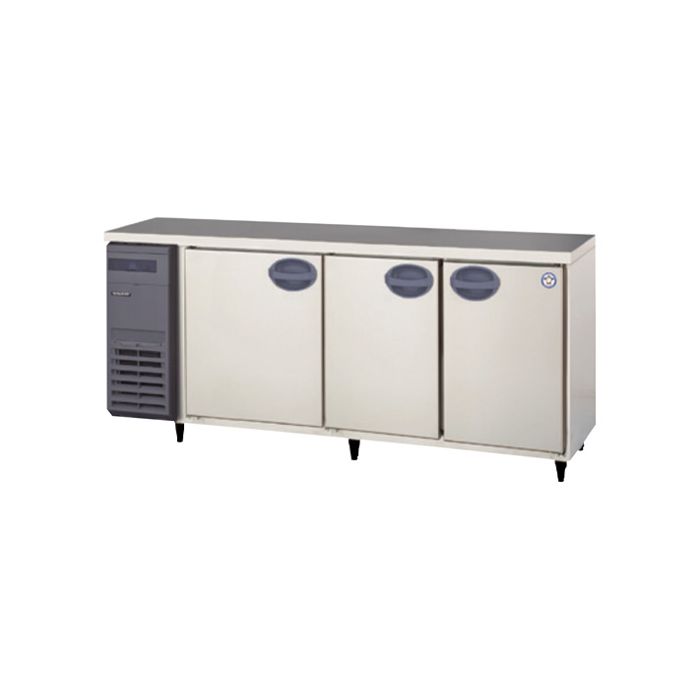

Name: GALILEI 3 DOOR COUNTER FREEZER / CHILLER (INVERTER) AYW-181PXA
Brand: Galilei
SKU: FG-AYW-181PXA

Features

Galilei · Model: AYW-181PXA

Pricing available on request

🚚 Delivery Optional 🔧 Installation Optional 🛡️ Warranty: Two Years Manufacturing Defects 💬 WhatsApp support

Key Specifications

ModelAYW-181PXA

BrandGalilei

Size (LxWxH) mm1800 x 750 x 800

Weight (KG)120

VoltageSingle Phase 220V

Capacity (ℓ)198 + 307

Warranty Two Years Manufacturing Defects

OriginThailand

Features

Model	AYW-181PXA
Capacity	Freezer	198 litres
	Refrigerator	307 litres
Voltage	Single Phase 220V
Frequency	50Hz
Cooling performance	Freezer	-25°C to -15°C
	Refrigerator	-5°C to 10°C
	(No load and ambient temperature of 30°C)
Refrigerant	R-1234yf
Temperature control	Microcomputer control, digital display
Defrost control	Microcomputer control defrost heater
Applicable breaker capacity	Single Phase 220V 15A 50Hz
Power cord	2.0m (Plug with earth wire)
Voltage range	220V ±6%
Cooling	Operation current	1.5A
	Power consumption	265W
	Power factor	80%
Defrosting	Operation current	1.7A
	Power consumption	366W
Refrigerant control method	Capillary tube
Condenser	Microchannel type, forced air-cooling
Evaporator	Fin and tube type, forced cold air circulation
Operating temperature range	5°C to 35°C
Radiation of heat capacity	310W
Adjustable leg	Resin made leg from 95 to 130 mm
Accessories	Shelves (6 Pieces)
	Drain accessory (1 Set)
Other accessories	Condenser filter
Interior material	Stainless steel
Exterior material	Stainless steel (Front and sides)
	Stainless steel (Top)
	Galvanized steel (Rear and bottom)
Door material	Stainless steel (Front)
Insulation material	Polyurethane foam
Adjustable shelf material	Steel wire resin coating
Outside dimension (L x W x H)	1800 x 750 x 800 mm
Inside dimension (L x W x H)	Freezer	541 x 603 x 595 mm
	Refrigerator	825 x 603 x 595 mm
Weight	120 kg
